DC Power Supplies

9Vdc Power Bank
Specifications:
Output Voltage 9Vdc
Current 1000mA Max
Supply 240Vac
Dimensions 134 x 50 x 43mm
Weight 219g
Subject to technical modifications.
A 9Vdc power bank for simultaneous connection of up to 10 effects pedals. 2.1mm DC sockets with negative centre polarity. Supplied with ten 280mm connecting leads, maximum load 100ma per outlet.
Order Code   each
460-147 Power Bank 9Vdc (10 Outputs) 26.60



Six 300mm, 2.1mm DC Power Cables
Specifications:
Model ADC-06
Type 2.1mm

Dimensions 300mm
Weight g
Subject to technical modifications.
A set of six coloured DC leads for use with effect pedals or DC voltage supplies. Each lead has two 2.1mm DC plugs, one on each end.
Order Code   each
567-100 6 x 300mm 2.1mm DC Power Cables 6.81



DC Power Feed-through Cable
Specifications:
Model ADC-05
Type 2.1mm

Dimensions 900mm (Max)
Weight g
Subject to technical modifications.
A special power lead for use by entertainers and musicians. Allows up to 5 different effect pedals to be connected to one power supply. Consists of five 2.1mm DC power plugs connected to one 2.1mm DC line socket. ( Power Supply must have suitable capacity to supply all pedals)
Order Code   each
567-105 Special DC feed-through cable 7.23



5Vdc USB Power Supply
Specifications:
Output Voltage 5.2Vdc
Current 1000mA
Supply 100 - 240Vac
Dimensions 72 x 43 x 48mm
Weight 60g
Subject to technical modifications.
5Vdc power supply, replicates DC voltage output used on computer USB sockets. Enables iPod's, PSP's, PDA's, Digital cameras and mobile phones to be charged without the need of a PC or Laptop. Fitted with USB socket.
Order Code   each
460-125 5Vdc Power Supply 6.70



Variable Voltage Power Supply (Un-Regulated)
Specifications:
Output Voltage 3 / 4.5 / 6 / 7.5 / 9 / 12Vdc
Current 300mA
Supply 240Vac
Dimensions 75 x 55 x 40mm
Weight 270g
Subject to technical modifications.
A conventional transformer supplying a choice of DC voltages. The supply is un-regulated and requires approximately 30% load to give selected voltage. Suitable for toys, keyboard and game consoles. Supplied with various power plugs to fit your application.
Order Code   each
460-005 Unregulated 300mA Power Supply 3.30



Variable Voltage Power Supply
Specifications:
Output Voltage 1.5 / 3 / 4.5 / 6 / 7.5 / 9 / 12Vdc
Power 8.4W
Supply 240Vac
Dimensions 91 x 55 x 52mm
Weight 470g
Subject to technical modifications.
A conventional transformer supplying a choice of DC voltages. The supply is regulated and will maintain selected voltage under all load conditions. Suitable for toys, keyboard and game consoles. Supplied with various power plugs to fit your application.
Order Code   each
460-165 500mA Variable Voltage Power Supply 6.76
460-170 700mA Variable Voltage Power Supply 7.96
460-175 1000mA Variable Voltage Power Supply 9.00



Regulated 6Vdc Power Supply
Specifications:
Output Voltage 6Vdc
Current 1000mA
Supply 110 - 240Vac
Dimensions 81 x 51 x 40mm
Weight 108g
Subject to technical modifications.
General purpose fixed voltage plug-in DC power supplies, suitable for toys, keyboard and game consoles. Supplied with various power plugs to fit your application.
Order Code   each
460-130 Regulated 6Vdc Power Supply 6.20
460-135 Regulated 9Vdc Power Supply 6.20
460-140 Regulated 12Vdc Power Supply 6.20



Energy Efficient Power Supply
Specifications:
Output Voltage 3.0 / 4.5 /5.0/ 6.0 / 7.5 / 9.0 and 12Vdc
Power 12W
Supply 240Vac
Dimensions 75 x 50 x 42mm
Weight 120g
Subject to technical modifications.
Energy efficient switch mode power supplies with a choice of output voltages. The supply is regulated and will maintain selected voltage under all load conditions. Suitable for toys, keyboard and game consoles. Supplied with various power plugs to fit your application.
Order Code   each
460-310 1000mA Variable Voltage Power Supply 9.30
460-315 1500mA Variable Voltage Power Supply 11.26
460-320 2250mA Variable Voltage Power Supply 15.16

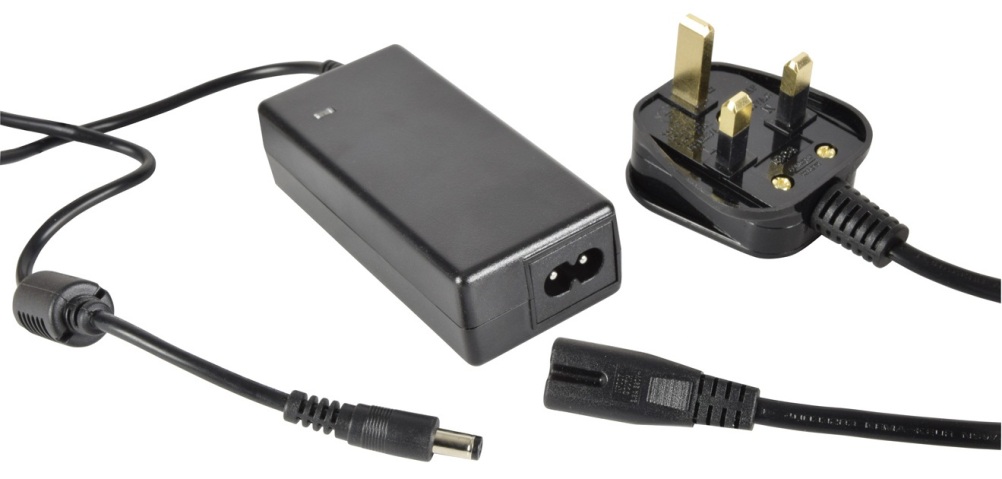

Desktop Power Supply 2500mA
Specifications:
Output Voltage 12Vdc
Current 2500mA
Supply 240Vac
Dimensions 95 x 45 x 25mm
Weight 193g
Subject to technical modifications.
A lightweight, low profile in-line power supply which uses the latest switch mode technology. Supplied with separate figure-8 mains lead, ideal for CCTV systems. Fitted with a 2.1mm DC Power plug, wired centre positive (+)
Order Code   each
460-145 Desktop Power Supply 2500mA 15.00



Universal Laptop Power Supply 4000mA
Specifications:
Output Voltage 12, 15, 16, 18, 19, 20 and 24Vdc
Current 4000mA
Supply 240Vac
Dimensions 115 x 58 x 37mm
Weight 300g
Subject to technical modifications.
A universal switch mode power supply suitable as a replace for laptop power supplies. A compact lightweight 70W unit with interchangeable plugs which will fit most laptops. The unit is overload and short circuit protected and has power on indicator.
Order Code   each
460-340 Universal Laptop Power Supply 4000mA 14.50



Universal Laptop Power Supply 6000mA
Specifications:
Output Voltage 15, 16, 18, 19, 20, 22 and 24Vdc
Current 6000mA
Supply 240Vac
Dimensions 155 x 65 x 38mm
Weight 490g
Subject to technical modifications.
A 120W switch mode power supply suitable as a replacement for laptops and PDA players. Supplied with eight interchangeable DC power plugs. The power supply also has a 5Vdc 500mA USB charger outlet.
Order Code   each
460-345 Universal Laptop Power Supply 6000mA 22.50
