Reed buzzer available in either 6V or 12V versions, ideal for school and
college projects.
Order Code
1
10+
25+
030-012
6V 400Hz Reed Buzzer
(27mm Fixing)
1.06
0.95
0.85
030-013
12V 400Hz Reed Buzzer
(27mm Fixing)
0.78
0.70
0.62
Specifications:
Voltage
3-28Vdc
Current
10mA
Sound
90db
Frequency
4.6kHz
Dimensions
13 x 32mmØ
Weight
8g

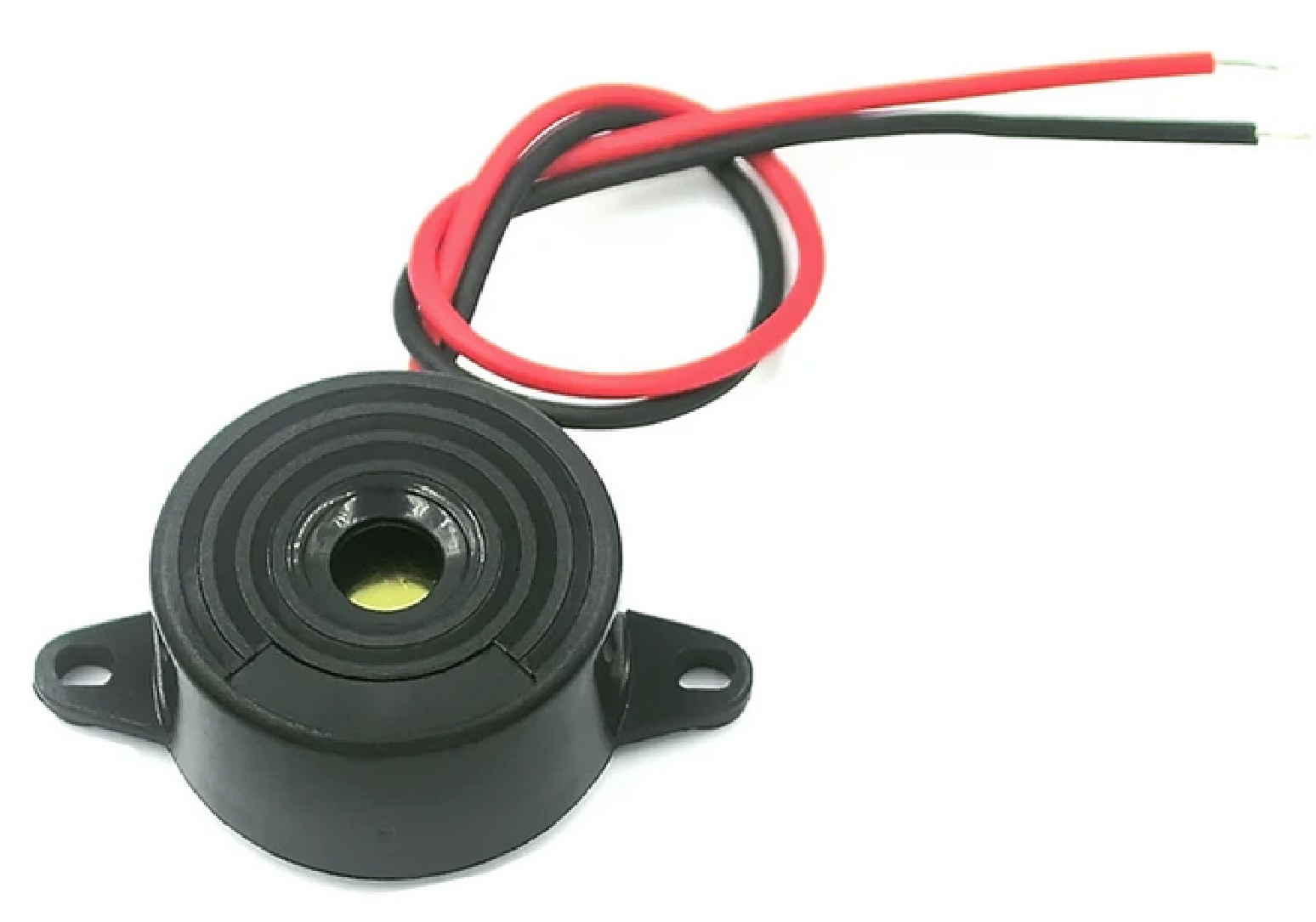

Single tone buzzer with low power consumption, extremely clear and
penetrating sound. Connection is made by red and black lead (150mm),
12Vdc supply.
Order Code
1
10+
25+
030-010
3-28Vdc Peizo Buzzer (38mm Fixing)
1.08
0.96
0.86
Specifications:
Voltage
9-15Vdc
Current
50mA
Sound
85db
Frequency
2.3kHz
Dimensions
7.5 x 17mmØ
Weight
1.6g
Extremely compact, ultra thin
PCB mounting audible warning sounder which produces a continuous single tone.
Supply voltage 12Vdc.
Order Code
1
10+
25+
030-015
PCB Mounting Peizo Buzzer
2.07
1.86
1.66
Specifications:
Voltage
3-20Vdc
Current
15mA
Sound
85db
Frequency
3.8kHz
Dimensions
18 x 24mmØ
Weight
4g
PCB mounting audible warning sounder which produces a continuous tone.
Supply voltage 12Vdc.
Order Code
1
10+
25+
030-019
PCB Mounting Peizo Buzzer
2.95
2.66
2.36
Specifications:
Voltage
6-16Vdc
Current
8mA
Sound
85db
Frequency
3.4kHz
Dimensions
12 x 22mmØ
Weight
7g
Buzzer with built-in oscillator, single tone. Supply 12Vdc
Order Code
1
10+
25+
030-020
Peizo Buzzer (Fixing 26.5mm)
1.46
1.22
0.97
Specifications:
Voltage
3-20Vdc
Current
18mA
Sound
85db
Frequency
2.8kHz
Dimensions
16 x 42mmØ
Weight
13g
HPE-350P piezo buzzer with drive circuit, produces a pulsed tone
(On/Off). Wide operating
voltage range, low power consumption, extremely clear and penetrating.
Order Code
1
10+
25+
030-022
HPE-350P Peizo Buzzer (Fixing 50mm)
0.55
0.45
0.35
Specifications:
Voltage
60-250Vac
Current
18mA
Sound
90db
Frequency
2.9kHz
Dimensions
33 x 43mmØ
Weight
50g
Fast-Pulsed sounder, designed for single hole panel mounting has screw
terminals and will operate direct from a mains electric supply.
