Peizo Transducer
Specifications:
Voltage 3-28Vac
Current 1.5mA
Sound 90db
Frequency 4.5kHz
Dimensions 5 x 25mmØ
Weight 4g
Subject to technical modifications.
Piezo transducer, requires external drive circuit to produce sound.
Order Code   1 10+ 25+
030-026 4.5kHz Peizo Transducer 0.63 0.56 0.50

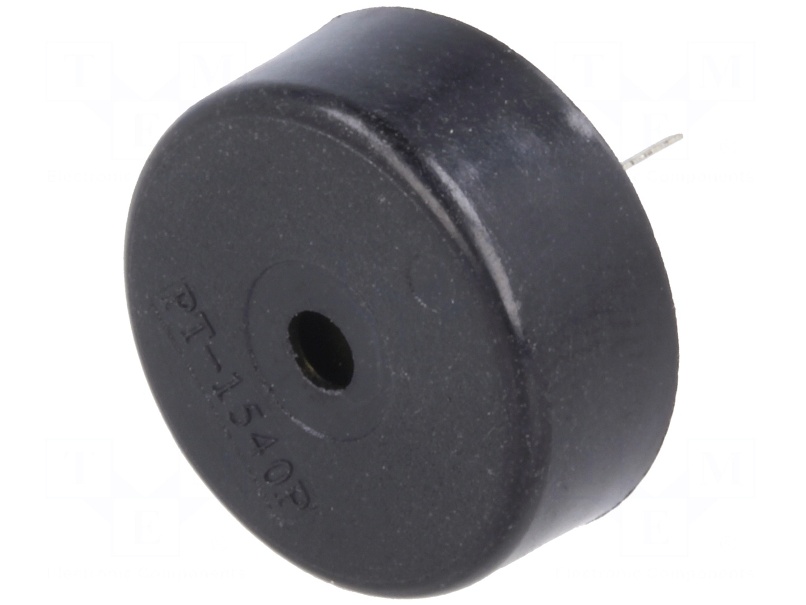

PCB Mounting Transducer
Specifications:
Voltage 30Vac
Current 10mA
Sound 90db
Frequency 4kHz
Dimensions 7 x 22mmØ
Weight g
Subject to technical modifications.
PCB mounting Piezo transducer, requires external drive circuit to produce sound.
Order Code   1 10+ 25+
030-028 4kHz Peizo Transducer, PCB Mounting 0.78 0.62 0.56



PCB mounting Piezo transducer
Specifications:
Voltage 1-2Vac
Current 10mA
Sound 75db
Frequency 2.048kHz
Dimensions 5.4 x 12mmØ
Weight 1.8g
Subject to technical modifications.
PCB mounting Piezo transducer, requires external drive circuit to produce sound.
Order Code   1 10+ 25+
030-029 4kHz Peizo Transducer, PCB Mounting 0.79 0.65 0.59
