6A SPST Rocker Switch
Specifications:
Contact Arrangement SPST
Connection Blade
Rating 6A 250Vac
Panel Cut out 20mmØ
Dimensions 17 x 23mmØ

Subject to technical modifications.
Round single hole fixing rocker switch, with 15mmØ button. Single pole contacts.
Order Code   1 10+ 25+
214-200 6A SPST Rocker Switch 0.63 0.53 0.42



3A DPST Rocker Switch
Specifications:
Contact Arrangement DPST
Connection Solder
Rating 3A 250Vac
Panel Cut out 20mmØ
Dimensions 17 x 23mmØ

Subject to technical modifications.
Round single hole fixing rocker switch, with 15mmØ button. Available with double pole contacts and double pole change over contacts.
Order Code   1 10+ 25+
214-250 3A DPST Rocker Switch 1.73 1.56 1.38
214-270 3A DPDT Rocker Switch 1.95 1.76 1.56



4A SPST Rocker Switch
Specifications:
Contact Arrangement SPST
Connection Blade 4.8mm
Rating 4A 250Vac
Panel Cut out 13 x 19mm
Dimensions 29 x 32 x 53mm

Subject to technical modifications.
Miniature single pole single throw rocker switch. Snap panel mount fastener.
Order Code   1 10+ 25+

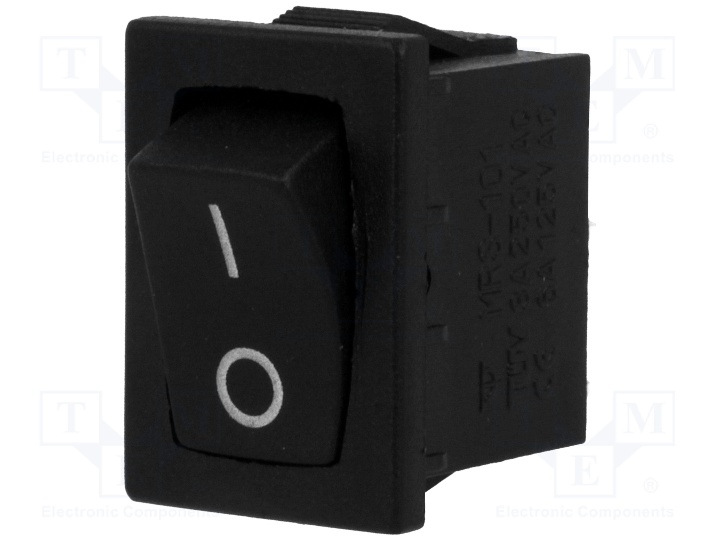

214-400 4A SPST Rocker Switch 0.50 0.45 0.40



4A SPDT Rocker Switch
Specifications:
Contact Arrangement SPDT
Connection Blade 4.8mm
Rating 4A 250Vac
Panel Cut out 13 x 19mm
Dimensions 15 x 21 x 19mm

Subject to technical modifications.
Miniature single pole change over rocker switch. Snap panel mount fastener.
Order Code   1 10+ 25+
214-420 4A SPDT Rocker Switch 0.41 0.33 0.25





4A DPST Rocker Switch
Specifications:
Contact Arrangement DPST
Connection Blade 4.8mm
Rating 14A 250Vac
Panel Cut out 13 x 19mm
Dimensions 15 x 21 x 19mm

Subject to technical modifications.
Miniature double pole single throw rocker switch. Snap panel mount fastener.
Order Code   1 10+ 25+
214-450 4A DPST Rocker Switch 0.81 0.68 0.54



3A SPST Rocker Switch, Red LED
Specifications:
Contact Arrangement DPST
Connection Blade
Rating 3A 250Vac
Panel Cut out 13 x 19mm
Dimensions 15 x 21 x 19mm

Subject to technical modifications.
Miniature single pole rocker switch, incorporates independent 3V red LED which is not connected to switch contacts. Snap panel mount fastener.
Order Code   1 10+ 25+
214-407 3A SPST Rocker Switch, Red LED 1.65 1.10 0.99



6A DPST Rocker Switch, Red Neon 6A DPST Rocker Switch, Amber Neon 6A DPST Rocker Switch, Green Neon
Specifications:
Contact Arrangement DPST
Connection Blade
Rating 6A 250Vac
Panel Cut out 13 x 19mm
Dimensions 15 x 21 x 27mm

Subject to technical modifications.
Miniature double pole single throw rocker switches with integral 250V neon indicator. Available in red, amber and green.  Snap panel mount fastener.
Order Code   1 10+ 25+

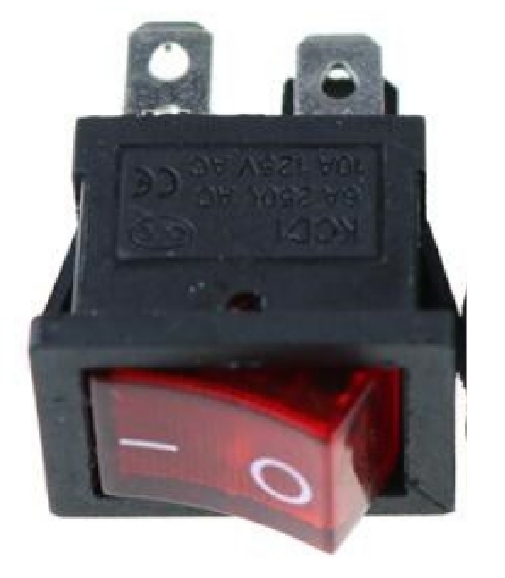

214-454 6A DPST Rocker Switch, Red Neon 1.01 0.81 0.61

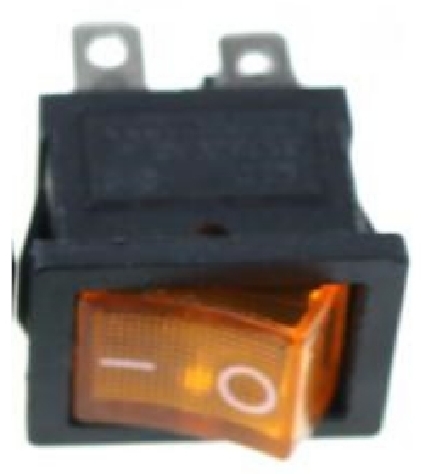

214-455 6A DPST Rocker Switch, Amber Neon 1.40 1.26 1.12

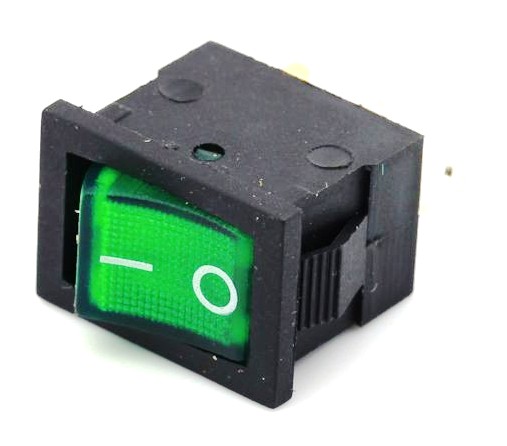

214-456 6A DPST Rocker Switch, Green Neon 1.10 0.88 0.79



4A DPST Rocker Switch, Red Neon
Specifications:
Contact Arrangement DPST
Connection Blade
Rating 4A 250Vac
Panel Cut out 19 x 22mm
Dimensions 19 x 24 x 26mm

Subject to technical modifications.
Miniature double pole single throw rocker switches with integral 250V red neon indicator. Snap panel mount fastener.
Order Code   1 10+ 25+
214-654 4A DPST Rocker Switch, Red Neon 1.90 1.71 1.52



10A SPST Rocker Switch, Red
Specifications:
Contact Arrangement SPST
Connection Blade
Rating 10A 250Vac
Panel Cut out 10 x 30mm
Dimensions 16 x 33 x 37mm

Subject to technical modifications.
Standard single pole non illuminated rocker switches. Available with single throw on/off contacts or as a change over switch with centre off position. Snap panel fixing.
Order Code   1 10+ 25+
214-800 10A SPST Rocker Switch, Red 0.45 0.38 0.30

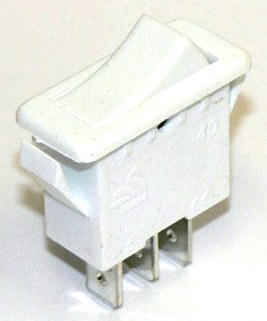

214-833 10A SPDT Rocker Switch, C/Off 0.75 0.63 0.50



16A SPST Rocker Switch
Specifications:
Contact Arrangement SPST
Connection Blade
Rating 16A 250Vac
Panel Cut out 10 x 30mm
Dimensions 16 x 33 x 37mm

Subject to technical modifications.
Standard single pole single throw rocker switch, snap fixing
Order Code   1 10+ 25+
214-801 16A SPST Rocker Switch 0.75 0.63 0.50





15A SPST Rocker Switch, Red Neon
Specifications:
Contact Arrangement SPST
Connection Blade
Rating 15A 250Vac
Panel Cut out 10 x 30mm
Dimensions 16 x 33 x 37mm

Subject to technical modifications.
Standard single pole single throw rocker switches with integral 250V red neon indicator. Snap panel mount fastener.
Order Code   1 10+ 25+
214-804 15A SPST Rocker Switch, Red Neon 1.00 0.80 0.40



16A SPDT Rocker Switch
Specifications:
Contact Arrangement SPST
Connection Blade
Rating 16A 250Vac
Panel Cut out 10 x 30mm
Dimensions 16 x 33 x 37mm

Subject to technical modifications.
Standard single pole change over rocker switch, snap fixing.
Order Code   1 10+ 25+
214-820 16A SPDT Rocker Switch 0.75 0.63 0.50



10A DPST Rocker Switch
Specifications:
Contact Arrangement DPST
Connection Blade
Rating 10A 250Vac
Panel Cut out 22 x 30mm
Dimensions 26 x 33 x 33mm

Subject to technical modifications.
Standard double pole single throw rocker switch, snap fixing.
Order Code   1 10+ 25+

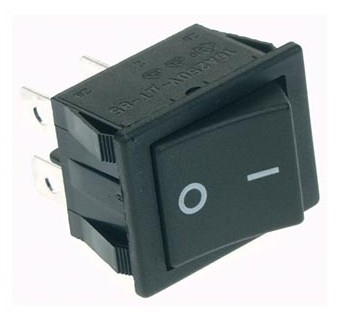

214-850 10A DPST Rocker Switch 0.90 0.75 0.60



10A DPST Rocker Switch, Red 10A DPDT Rocker Switch, C/Off
Specifications:
Contact Arrangement DPDT
Connection Blade
Rating 10A 250Vac
Panel Cut out 22 x 30mm
Dimensions 26 x 33 x 33mm

Subject to technical modifications.
Standard double pole change over rocker switches, snap fixing. Also available with centre off position
Order Code   1 10+ 25+
214-872 10A DPDT Rocker Switch, Red 0.83 0.56 0.50
214-880 10A DPDT Rocker Switch, C/Off 0.90 0.75 0.60

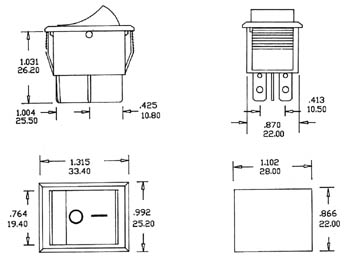

15A DPST Rocker Switch, Red Neon 15A DPST Rocker Switch, Amber Neon 15A DPST Rocker Switch, Green Neon
Specifications:
Contact Arrangement DPST
Connection Blade
Rating 15A 250Vac
Panel Cut out 22 x 30mm
Dimensions 26 x 33 x 33mm

Subject to technical modifications.
Double pole, single throw illuminated mains rated rocker switches, with built in neon. Available in three colours, Red, Amber and Green.
Order Code   1 10+ 25+
214-854 15A DPST Rocker Switch, Red Neon 1.41 0.94 0.85
214-855 15A DPST Rocker Switch, Amber Neon 1.50 1.00 0.90
214-856 15A DPST Rocker Switch, Green Neon 1.88 1.50 1.35
