Cable Tester

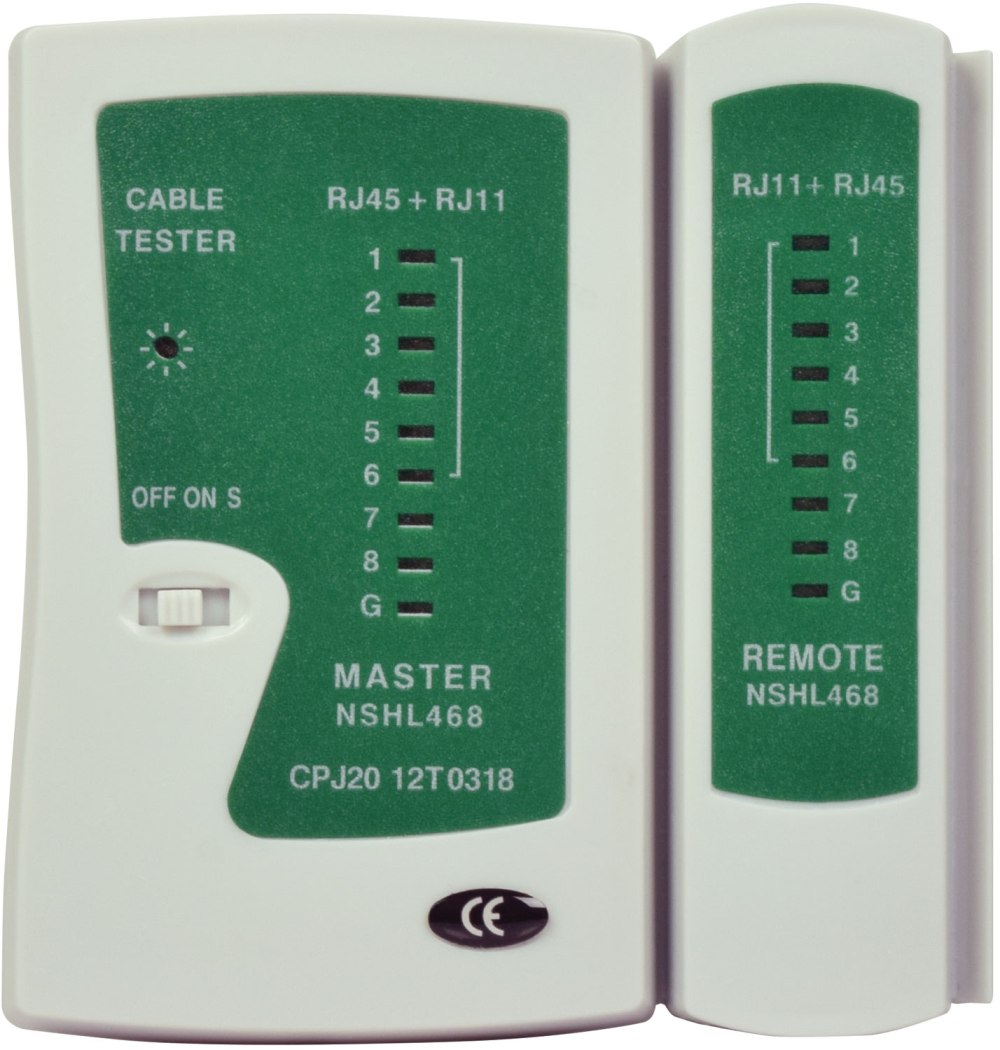

Practical two-part network tester for wiring installations. Tests correct pin configurations of 10-Base-T (Cat 5), 10-Base-2 cable (coax), RJ45/RJ11 modular cables, 356A, TIA-568A/B and token ring cable systems. Remote cable tester unit can test cables installed up to 1000ft away either on wall plate or patch panel Easy-to-read display verifies cable continuity, open, short and cross-connect Comes complete with remote tester unit, RJ45 cable, RJ45 plug to RJ12 jack adaptor, 2 x BNC adaptor cables, BNC male - BNC male adaptor. Network Cable Tester
Specifications:
Model

Battery 9V (1 x PP3)
Case no
Dimensions mm
Weight g
Order Code   Each
123-250 Two Part Network Cable Tester, Includes BNC & RJ12 adaptors 19.95

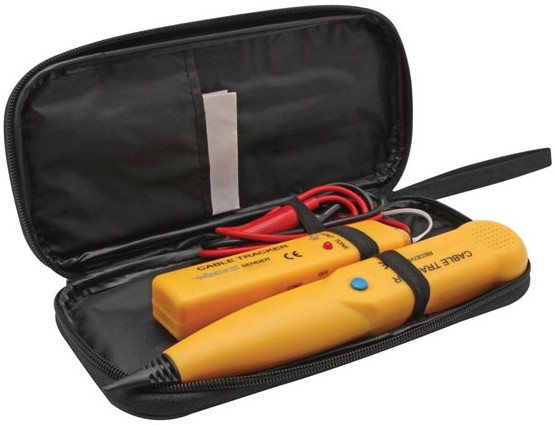

The VTTEST11 Cable Tracker, consists of a tone generator which generates a single 900Hz or dual 900 / 1000Hz square wave.

The receiving probe, which detects the signal from the tone generator. Enables the operator to determine the cable route and if there is a break or fault in the cable.

The Cable tracker has audible and visual indication. Supplied with carry bag, croc-clips and RJ network plug.

 VTTEST11 Cable Tracker
Specifications: (Tone Generator)
Model VTTEST11
Output Frequency 900Hz and 900 / 1000Hz
Current 10mA - 20mA
Battery 9V (1 x PP3)
Dimensions 115 x 62 x 27mm
Weight 130g
Specifications: (Probe)
Sensitivity 30mV
Current 25mA
Battery 9V (1 x PP3)
Dimensions 205 x 40 x 38mm
Weight 80g
Order Code   Each
123-260 VTTEST11 Cable Tracker including Case 29.95



Professional cable and lead tester, enables quick and convenient continuity testing for all types of audio cables. Rugged metal case for ultimate roadworthiness, long life and reliability.

  • Banana

  • RCA
  • Speakon
  • XLR plugs and sockets
  • 5-Pin Midi
  • 1/4" Jack (including TRS)

Six way rotary switch selects type of lead, LED's indicators confirm the condition of the cable under test. Built-in battery and ground condition test.

 VTTEST14 Audio Cable Tester
Specifications:
Model VTTEST14

Battery 9V (1 x PP3)
Carry Case no
Dimensions 160 x 66 x 120mm
Weight 575g
Order Code   Each
123-210 VTTEST14 Audio Cable Tester 15.95

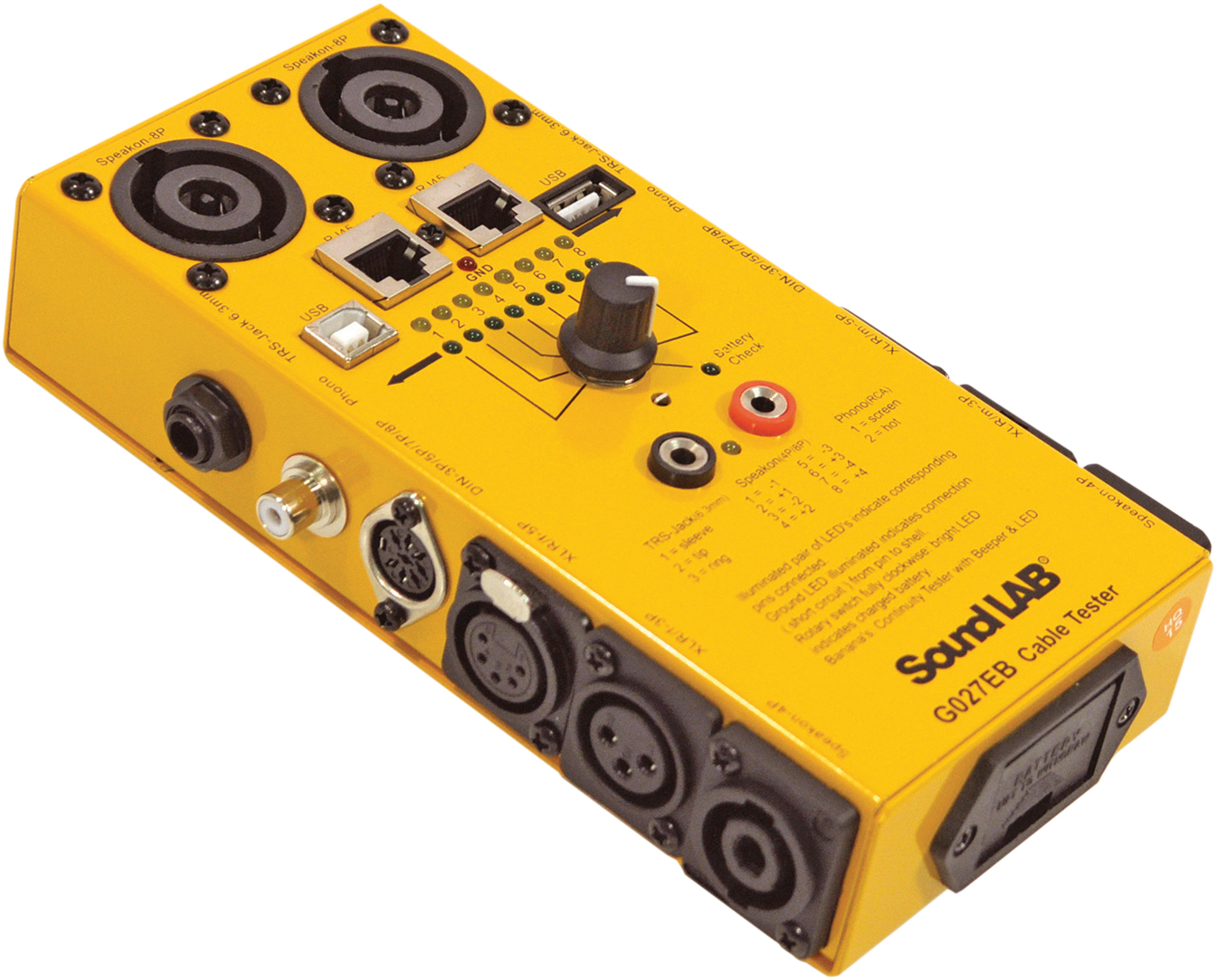

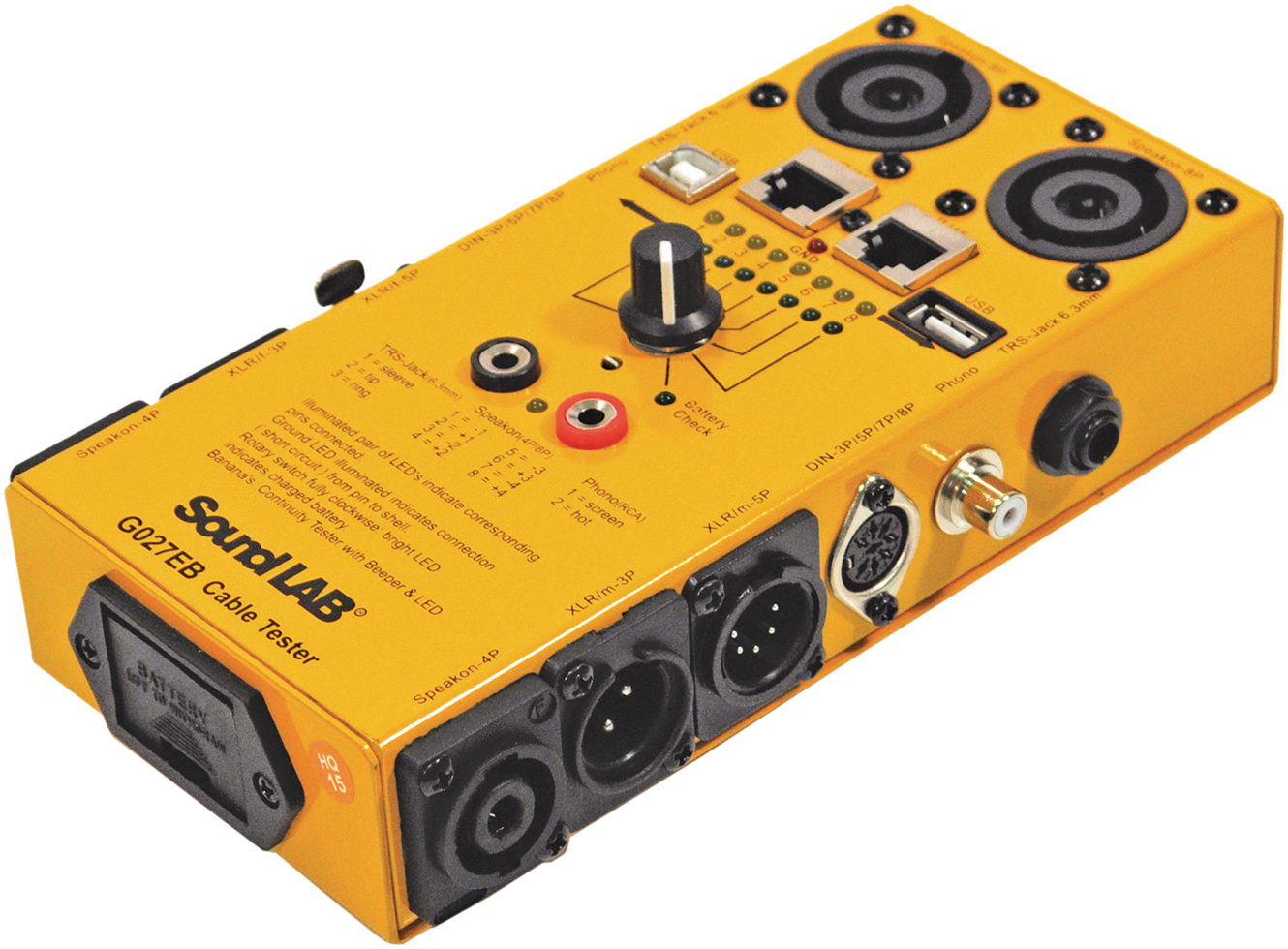

Professional cable and lead tester, enables quick and convenient continuity testing for all types of audio cables. Rugged metal case for ultimate roadworthiness, long life and reliability.

  • Banana

  • RCA
  • Speakon 4 and 8 Pole
  • 3 and 5 Pole XLR plugs and sockets
  • 5-Pin Midi
  • 3.5mm Jack
  • 1/4" Jack (including TRS)

Nine way rotary switch selects type of lead, LED's indicators confirm the condition of the cable under test. Built-in battery and ground condition test, supplied with battery and set of test probes.

 VTTEST15 Audio Cable Tester
Specifications:
Model VTTEST15

Battery 9V (1 x PP3 included)
Carry Case no
Dimensions 190 x 60 x 110mm
Weight 940g
Order Code   Each
123-215 VTTEST15 Audio Cable Tester 33.85
