Chassis Mounting Transformers

10.8VA Chassis Transformer
Specifications:
Model
Voltage 0 - 9
Current 1200mA
Rating 10.8VA
Dimensions 42 x 60 x 52mm
Fixing Centres mm
Weight 445g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and single secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-409 0 - 9v 1200mA 10.8VA Chassis Transformer 3.69 3.32



12VA Chassis Transformer
Specifications:
Model
Voltage 0 - 12
Current 1000mA
Rating 12VA
Dimensions 42 x 52 x 52mm
Fixing Centres mm
Weight 465g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and single secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-412 0 - 12v 1000mA 12VA Chassis Transformer 4.64 4.18



3.6VA Chassis Transformer
Specifications:
Model
Voltage 6 - 0 - 6
Current 300mA
Rating 3.6VA
Dimensions 32 x 40 x 35mm
Fixing Centres
Weight 135g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-306 6 - 0 - 6 300mA 3.6VA Chassis Transformer 2.64 2.38



4.5VA Chassis Transformer
Specifications:
Model
Voltage 9 - 0 - 9
Current 250mA
Rating 4.5VA
Dimensions 36 x 62 x 38mm
Fixing Centres 51mm
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-309 9 - 0 - 9 250mA 4.5VA Chassis Transformer 3.60 3.24



6VA Chassis Transformer
Specifications:
Model
Voltage 12 - 0 - 12
Current 300mA
Rating 7.2VA
Dimensions 35 x 65 x 32mm
Fixing Centres 54mm
Weight 160g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-312 12 - 0 - 12 250mA 6VA Chassis Transformer 3.22 2.90



9VA Chassis Transformer
Specifications:
Model
Voltage 9 - 0 - 9
Current 500mA
Rating 9VA
Dimensions 45 x 50 x 42mm
Fixing Centres 72mm
Weight 285g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+
311-509 9 - 0 - 9 500mA 9VA Chassis Transformer 3.72



12VA Chassis Transformer
Specifications:
Model
Voltage 12 - 0 - 12
Current 500mA
Rating 12VA
Dimensions 35 x 42 x 42mm
Fixing Centres 52mm
Weight 225g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+
311-512 12 - 0 - 12 500mA 12VA Chassis Transformer 3.24



12VA Chassis Transformer
Specifications:
Model
Voltage 0 - 12, 0 - 12
Current 500mA
Rating 12VA
Dimensions 50 x 83 x 42mm
Fixing Centres 73mm
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and two separate secondary windings. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
311-520 12 - 0, 12 - 0, 500mA 12VA Chassis Transformer 6.17 5.55



18VA Chassis Transformer
Specifications:
Model
Voltage 9 - 0 - 9
Current 1A
Rating 18VA
Dimensions 41 x 71 x 40mm
Fixing Centres 62mm
Weight g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-109 9 - 0 - 9 1A 18VA Chassis Transformer 5.80 5.22



24VA Chassis Transformer
Specifications:
Model WS-80302
Voltage 12 - 0 - 12
Current 1A
Rating 24VA
Dimensions 42 x 50 x 47mm
Fixing Centres
Weight 135g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-112 12 - 0 - 12 1A 24VA Chassis Transformer 5.25 4.73



30VA Chassis Transformer
Specifications:
Model
Voltage 15 - 0 - 15
Current 1A
Rating 30VA
Dimensions 50 x 84 x 50mm
Fixing Centres 71mm
Weight 661g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-115 15 - 0 - 15 1A 30VA Chassis Transformer 6.70 6.03



24VA Chassis Transformer
Specifications:
Model
Voltage 6 - 0 - 6
Current 2A
Rating 24VA
Dimensions 50 x 82 x 48mm
Fixing Centres 71mm
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-206 6 - 0 - 6 2A 24VA Chassis Transformer 7.11 6.40



24VA Chassis Transformer
Specifications:
Model
Voltage 9 - 0 - 9
Current 2A
Rating 24VA
Dimensions 50 x 82 x 50mm
Fixing Centres 78mm
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-209 9 - 0 - 9 2A 24VA Chassis Transformer 9.86 8.87

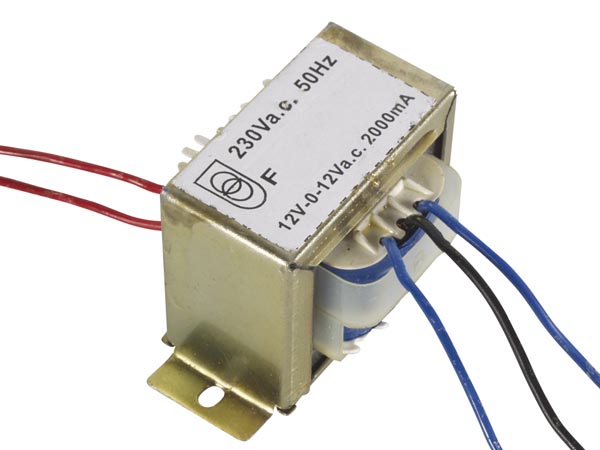

48VA Chassis Transformer
Specifications:
Model
Voltage 12 - 0 - 12
Current 2A
Rating 48VA
Dimensions 50 x 60 x 50
Fixing Centres 70mm
Weight 680g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-212 12 - 0 - 12 2A 48VA Chassis Transformer 11.72 11.30



48VA Chassis Transformer
Specifications:
Model
Voltage 0 - 12, 0 - 12
Current 2A
Rating 48VA
Dimensions 57 x 94 x 50mm
Fixing Centres 81mm
Weight 789g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and separate secondary windings. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-520 12 - 0, 12 - 0, 2A 48VA Chassis Transformer 6.94 6.25



48VA Chassis Transformer
Specifications:
Model
Voltage 6 - 0 - 6
Current 4A
Rating 48VA
Dimensions 58 x 95 x 54mm
Fixing Centres 81mm
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-606 6 - 0 - 6 4A 48VA Chassis Transformer 6.89 6.20



Transformer
Specifications:
Model
Voltage 9 - 0 - 9
Current 4A
Rating 72VA
Dimensions 57 x 68 x 66
Fixing Centres
Weight
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-609 9 - 0 - 9 4A 72VA Chassis Transformer 8.26 7.43



Transformer
Specifications:
Model
Voltage 12 - 0 - 12
Current 3A
Rating 72VA
Dimensions 68 x 95 x 57mm
Fixing Centres 80mm
Weight 1.15kg
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-612 12 - 0 - 12 3A 72VA Chassis Transformer 9.34 8.41



50VA Chassis Transformer
Specifications:
Model
Voltage 0 - 12
Current 4A
Rating 50VA
Dimensions 58 x 93 x 61mm
Fixing Centres 81mm
Weight 1075g
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and single secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-712 0 - 12 50VA Chassis Transformer 6.95 6.26

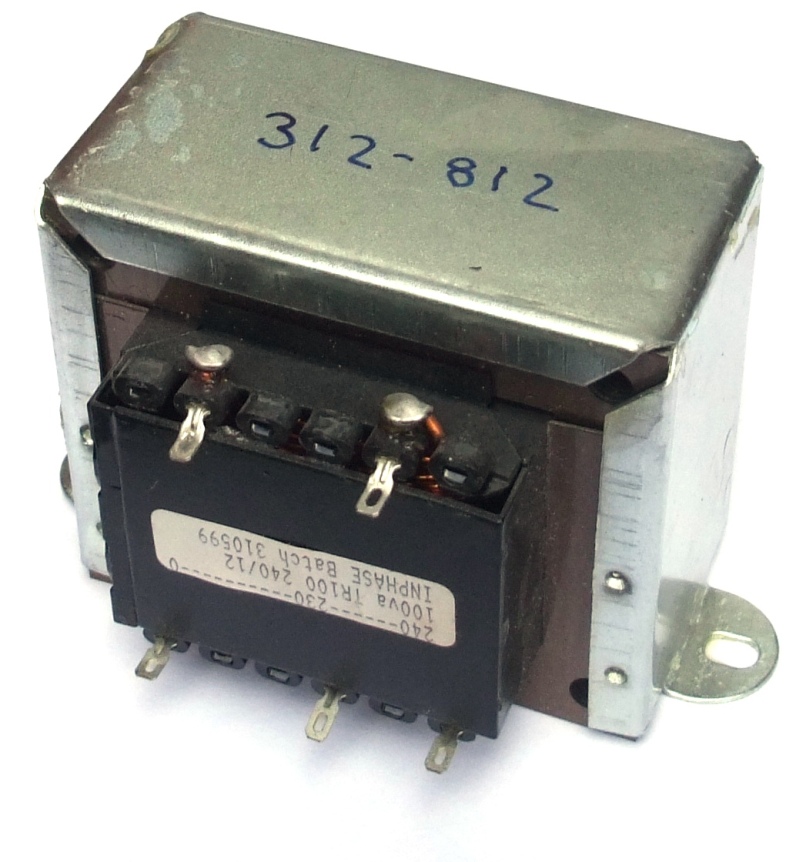

Specifications:
Model
Voltage 0 - 12
Current 8A
Rating 100VA
Dimensions 74 x 112 x 74mm
Fixing Centres 101mm
Weight 2kg
Subject to technical modifications.
General purpose chassis mounting mains transformer. Transformer has 240V primary windings and single secondary winding. The transformer has flying coloured insulated connecting leads. (approx 100mm long)
Order Code   1+ 10+
312-812 0 - 12 100VA Chassis Transformer 12.65 11.39
