Side Tag Transformers

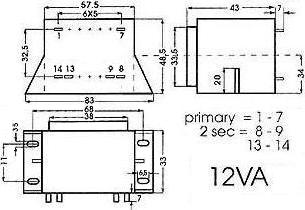

12VA Side Tag Transformer 12VA Side Tag Transformer (Rear)
These 12VA Side Tag transformers have 230Vac primary winding and split secondary windings. These can be connected in series for split rail supplies or wired in parallel to increase current rating. The transformer is enclosed in a plastic housing with the terminals accessible by solder tags on one side.
Order Code   1+ 10+
301-045 Side Tag Transformer 0 - 6, 0 - 6V (2 x 1A) 8.88 7.55
301-060 Side Tag Transformer 0 - 12, 0 - 12V (2 x 0.5A) 8.93 7.59
301-065 Side Tag Transformer 0 - 15, 0 - 15V (2 x 0.4A) 8.94 7.60
301-075 Side Tag Transformer 0 - 24, 0 - 24V (2 x 0.25A) 8.95 7.61



24VA Side Tag Transformer (Rear)
These 24VA Side Tag transformers have 230Vac primary winding and split secondary windings. These can be connected in series for split rail supplies or wired in parallel to increase current rating. The transformer is enclosed in a plastic housing with the terminals accessible by solder tags on one side. (Weight 715g)
Order Code   1+ 10+
301-140 Side Tag Transformer 0 - 6, 0 - 6V (2 x 2.083A) 11.77 10.59
301-145 Side Tag Transformer 0 - 7V5, 0 - 7V5 (2 x 1.667A) 11.78 10.01
301-155 Side Tag Transformer 0 - 9, 0 - 9V (2 x 1.389A) 11.83 10.06
301-160 Side Tag Transformer 0 - 12, 0 - 12V (2 x 1.042A) 12.28 10.44
