Velleman Universal Temperature Sensor Kit Velleman Kits

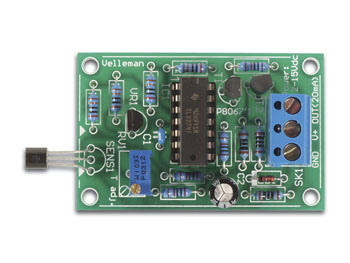

Universal Temperature Sensor Kit

Specification Features:

  • Range: -20° ~ +70°C
  • Output: 0 ~ 20mA current loop
  • Output voltage compliance: 10V
  • Accuracy: 2° full range
  • One single adjustment
  • 3-wire system: GND, +V and OUT
  • Power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT
  • Current consumption: 30mA max.

Read the fully Illustrated Assembly Manual for WSHA8067

PDF Download

Transformer



Case



Dimensions (PCB)

55 x 35mm

Weight

kg


Applications include measurement of indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc... Monitor temperatures in processes, put a temperature readout on your website, check your pools temperature etc. Replacement temperature sensor LM335Z

Additional software to up grade and improve this product is available from our download section on this website.

Order Code   Each
WSHA8067 Whadda Universal Temperature Sensor Kit 9.82



  Call in By Phone Order by Post Order Online





sales@esr.co.uk

Tel: 0191 251 4363




• Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
