Velleman RGB LED Strip Colour Controller

Velleman RGB LED Strip Colour Controller

Specification Features:
  • Easy remote control operation
  • Hi power MOSFET outputs
  • Ideal for use with common anode LED RGB strips
  • Transmitter is Fcc approved: NL08058
  • 7 colour tones
  • 10 dimming steps
  • 8 Transmitters auto-learning function
  • TX/RX 433MHz operation
  • LED PWM freq: 300Hz
  • Power Supply 10 - 15Vdc 9A Max
  • RF Transmitter required VM118R
  • Optional USB to RF Transmitter K8074

Read the fully Illustrated Manual for VM161

 PDF Download

Power Supply

460-610

Case



Dimensions

80 x 70 x 23mm

Weight

kg

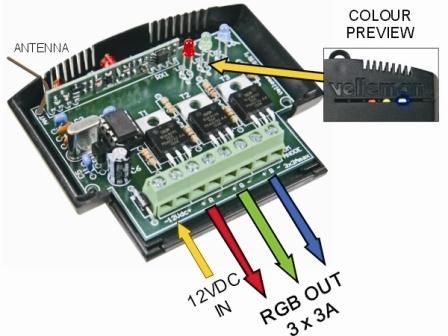

This module is designed to control LED's for display advertising and light effects. The three outputs drive high power Mosfet's which can each sink about 3A. Many colours and dimming combinations can be selected. Remote control handset must be order separately VM118R

Order Code   1+
VM161 Velleman RGB LED Strip Colour Controller 22.75
