Cebek Slot Machine Timer


Cebek Slot Machine Timer
Specifications:
Reference I-204
Range 1 to 9999 sec or 1 to 9999 min
Input 5VDC
Output Load 2A
Consumption 140mA
Power Supply 12 or 24VDC
Dimensions 84 x 78 x 35mm
Weight 154g
Technical Information > Download the Handbook for full specifications and applications

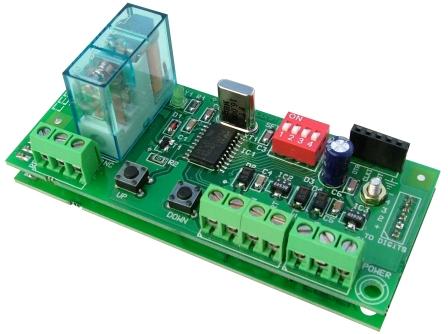

The Cebek I-204 is a digital timer for coin machines used on TV's, Arcade Games etc. It uses a quartz oscillator to maintain a high standard of accuracy. It has a 0.5" LED display and one relay output. The module allows you to select the connection time for each inserted coin according two different timing scales: Seconds or Minutes, with times of 5, 10, 15, 30, 60, 90, 120 or 240. Time is adjusted thanks to a switch incorporated in the PCB. When a coin is inserted, the operating time is activated and the output is connected. If some more coins are inserted, the corresponding time will be stored in memory up to its complete consumption.
Vending Machine Coin Selector
Related Products::
Power Supply FE-113
Housing C-7492
Coin Counter C-5260

Order Code   Each
I-204 Cebek Slot Machine Timer 52.81
