Cebek 8-Channel Sequential Controller



Cebek 8-Channel Sequential Controller

Specifications:
ReferenceLS-8

Maximum Load2A
Consumption20mA
Power Supply12VDC
Dimensions72x 121 x 20mm
Weight125g
Technical Information >Download the Handbook for full specifications and applications

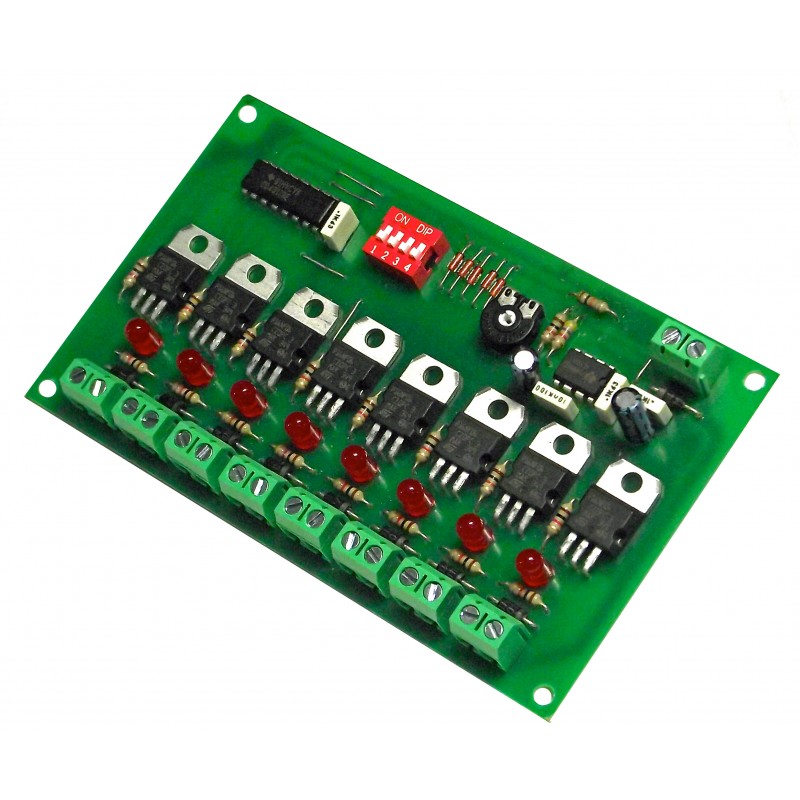

The Cebek LS-8 is a 8-Channel sequencer. The LS-8 uses MOSFET transistors to alternate between the eight outputs (One after each other). This module has the unique facility which allows you to select the number of channels. (4, 5, 6, 7 and 8) The speed is adjustable between by means of a PCB mounted pre-set potentiometer, 0.2 to 12 seconds. The outputs can each control a 12Vdc load up to 2 Amps, a red LED gives on board indication of transistor output. Ideal for switching LED Tape, Incandescent lamps or even relays.

Related Products::
Power SupplyFE-11



Order Code Each
LS-8Cebek 8-Channel Sequential Controller30.76
