Cebek  TL-101 1-Channel RF Receiver

Specifications:
Reference TL-101
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 1
Relay Output 3A
Consumption 70mA
Power Supply 12 or 24VDC
Dimensions 72 x 77 x 30 mm
Weight 98g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7567 >

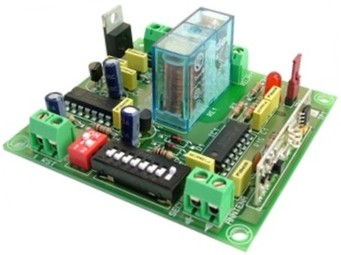

The Cebek TL-101 is a single channel 12 or 24Vdc RF remote control receiver with relay output. The receiver is a PCB module which can be configured for momentary (Pressing the switch on the transmitter operates the relay, releasing the switch the relay deactivates) or latching action (Pressing the switch on the transmitter operates the relay, pressing the switch again deactivates the relay). Easy to programme, the transmitter and receiver each have an 8-way 3 position DIL switch to select one of 13,122 possible combinations. The TL-102 receiver can be paired with a TL-5 transmitter These Cebek modules are ideal for installing in your bespoke industrial control application. They have many uses such as garden gate opener, roller shutter remote, garage door opener, car or vehicle immobiliser, remote barrier control and remote stopping or starting of plant or machinery.



Will also operate with the following Transmitters
Single Channel 25m Key Fob TL-5
Re-Transmission Booster TL-99

Related Products::
Power Supply FE-113
Antenna C-0509

Order Code   Each
TL-101 Cebek 1-Channel RF Receiver (Momentary/Latching) 24.99
