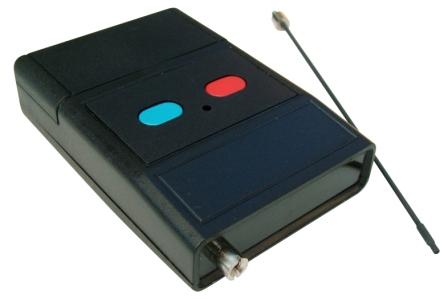

Cebek 2-Channel 300 metre RF Transmitter


Cebek 2-Channel 300 metre RF Transmitter

Reference TL-14
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 2
Range 300m
Consumption 2mA
Power Supply 12VDC 23A Battery
Dimensions 90 x 60 x 24mm
Weight 96g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-14 is a two channel high power transmitter for all Cebek Group 1 RF remote control receivers. Through the Certified radio frequency signal of 433.92 MHz. the transmitter will emit a coded signal to the receivers, allowing it to switch off or on the receivers relay. To personalise remote controls you have more than 13,122 combinations, the required code is easily selected thanks to the DIL switch fitted inside each remote control. All transmitter modules are supplied in an cigarette box style enclosure with battery and antenna.
Will Operate with the following Receivers
Single Channel (12Vdc) Momentary Action TL-1
Two Channel (12Vdc) Momentary Action TL-2
Single Channel (230Vac) Momentary Action TL-3
Two Channel (230Vac) Momentary Action TL-4
Single Channel (12Vdc) Latching Action TL-7
Two Channel (12Vdc) Latching Action TL-8
Single Channel (230Vac) Latching Action TL-9
Single Channel (12Vdc) Latching/Momentary TL-101
Two Channel (12Vdc) Latching/Momentary TL-102
Single Channel (230Vac) Latching/Momentary TL-103
Two Channel (230Vac) Latching/Momentary TL-104
Re-Transmission Booster TL-99
Related Products::
Battery 23A
Order Code   Each
TL-14 Cebek 2-Channel 300 metre RF Transmitter (Black) 38.62
