Rack Strip

Aluminium Profile Line Drawing
Specifications:
Model R0830
Material Aluminium
Wall Thickness 2.5mm
Dimensions 30 x 16.5 x 2000mm
Weight 196g
Slotted aluminium rack strip, simply fit to inside of case or cabinet. Use M6 nut (048-608) to secure equipment.
Order Code   Each
407-730 Aluminium Rack Strip (2 metre length) 5.12 This Product will only be sent by Carrier, check terms for current charge.



M6 Nut for Aluminium Rack Strip
Specifications:
Material Steel
Finish Zinc Plated
Thread M6


Specialist rack nut, the nut fits into our aluminium rack strip 407-730 and is used with 048-641 M6 screws. The nut is also suitable for use with our ABS flight cases.
Order Code   Each
048-608 M6 Nut for Aluminium Rack Strip 0.06



Pre-Punched Aluminium Rack Strip Line Drawing
Specifications:
Model R0900
Material Aluminium
Wall Thickness 3.0mm
Dimensions 20 x 20 x 2000mm
Weight 547g
Pre-Punched aluminium rack strip, simply fit to inside of case or cabinet. Use M6 nut (048-610) to secure equipment. (45 Holes)
Order Code   Each
407-734 Pre-Punched Aluminium Rack Strip (2 metre length) 12.13 This Product will only be sent by Carrier, check terms for current charge.



M6 Captive Nut
Specifications:
Material Steel
Finish Zinc Plated
Thread M6


M6 captive nut or use to fix 19" equipment to rack strip. The cage nut clips in to the rack rail (407-734) and is used with any M6 screws.
Order Code   Each
048-610 M6 Captive Nut for Aluminium Rack Strip 0.15

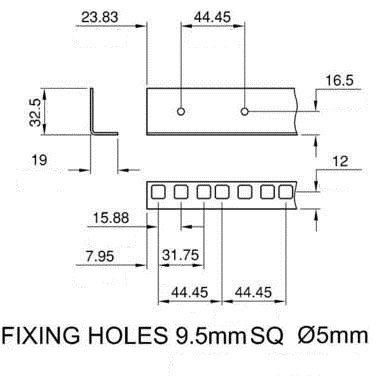

Steel Pre-Punched Rack Strip Line Drawing
Specifications:
Model R0863
Material Steel
Finish Black Paint
Hole 9.5mm Square

Weight 0.895kg
Single row rack strip manufactured from 2mm gauge steel. The cage nut clips in to the rack rail (048-612) and is used with any M6 screws.
Order Code   Each
407-740 Steel Single Rack Strip Pre-punched 45 spaces (2 metre length) 9.57 This Product will only be sent by Carrier, check terms for current charge.

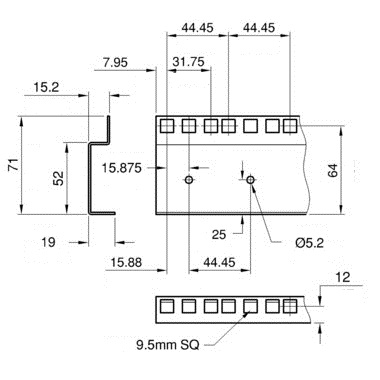

Double Pre-Punched Steel Rack Strip Line Drawing
Specifications:
Model R0883
Material Steel
Finish Black Paint
Hole 9.5mm Square

Weight 1.9kg
Double row rack strip manufactured from 2mm gauge steel. The cage nut clips in to the rack rail (048-612) and is used with any M6 screws.
Order Code   Each
407-742 Steel Double Rack Strip Pre-punched 45 spaces (2 metre length) 15.70 This Product will only be sent by Carrier, check terms for current charge.

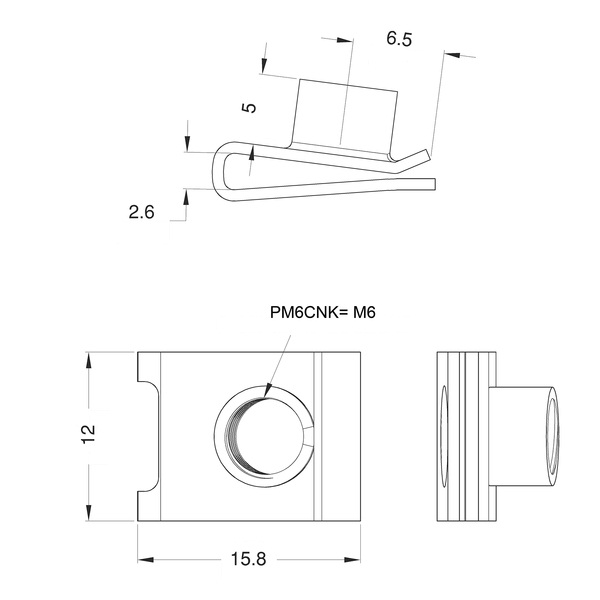

M6 U-Spring Nut for Steel Rack Strip Line Drawing
Specifications:
Material Steel
Finish Zinc Plated
Thread M6


M6 U-Spring Nut. The nut clips on to the rack rail (407-740 and 407-742) and can be used with any M6 screws.
Order Code   Each
048-612 M6 U-Spring Nut for Steel Rack Strip 0.14



Rack Fixing Kit
Specifications:
Material Steel/Plastic
Finish Zinc Plated
Thread M6


A set of 20 metric M6 steel bolts, washers and captive nuts. Suitable for securing 19" rack equipment in to cabinets or cases.
Order Code   Each
397-200 Rack Fixing Kit 2.94
