Horn Flares Thread

Horn Flare 8" x 9"
Specifications:
Dimensions242 x 198 x 138mm
WeightKg
Suitable Drivers >80 Watt Compression Driver
PA mid-high range horn with standard 35mm (1 3/8 ") metal thread. Manufactured from ABS plastic, superior design for a modern speaker appearance, vertical. 60° and dispersion horizontal 90°.
Order Code Each
200-382Plastic Horn "9 x 7" for 1⅜" Compression Drivers13.33

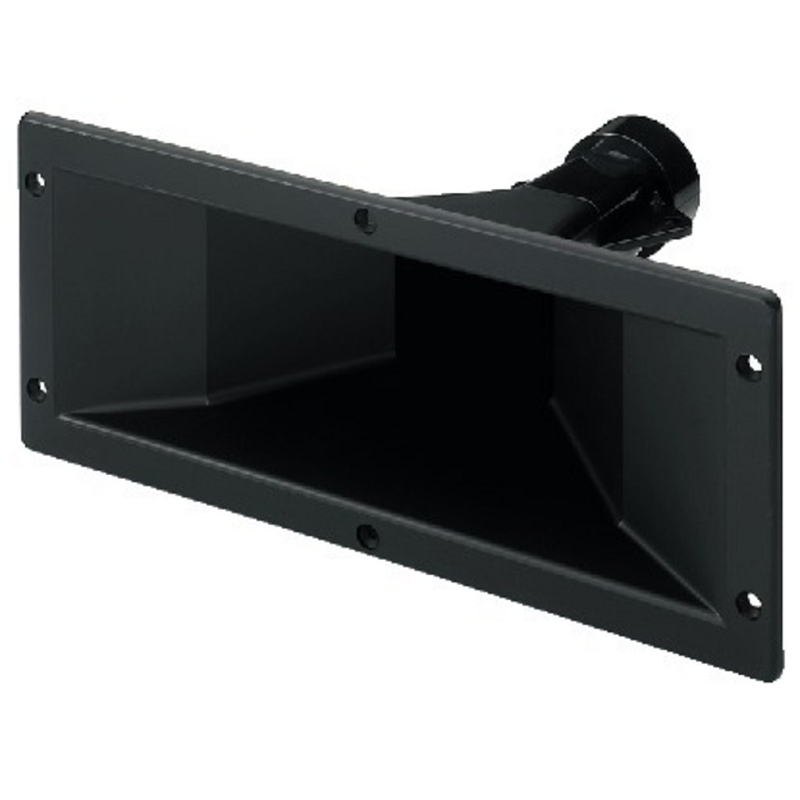

Plastic Horn for Compression Drivers
Specifications:

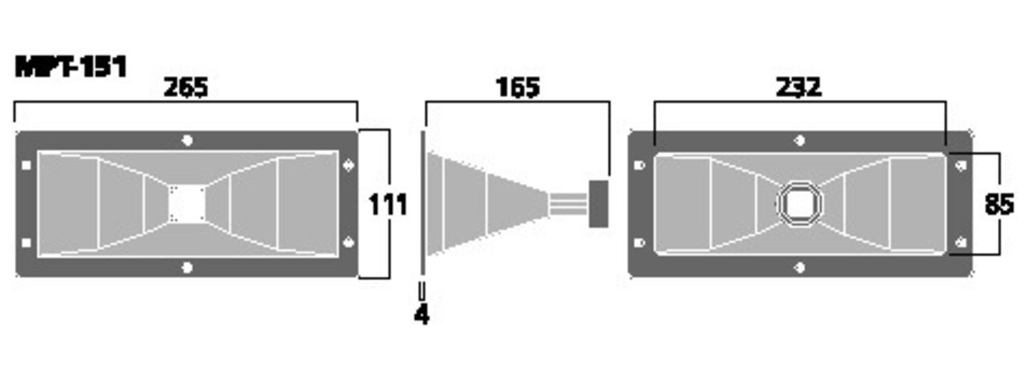

Dimensions265 x 111mm
Weight350g
Suitable Drivers >80 Watt Compression Driver
Plastic horn for compression drivers which have a 1⅜" thread. This horn gives good distribution of sound, it is ideal for use in PA or Disco applications.
Order Code Each
200-384Plastic Horn 10½" x 4⅜" for 1⅜" Compression Drivers9.47



Horn Flare 12" x 5"Horn Flare 12" x 5"
Specifications:
Dimensions125 x 315 x 160mm
Weight269g
Suitable Drivers >80 Watt Compression Driver
Plastic horn for compression drivers which have a 1⅜" thread. This horn gives good distribution of sound, it is ideal for use in PA or Disco applications.
Order Code Each
200-386Plastic Horn 12" x 5" for 1⅜" Compression Drivers5.50

Horn Flares Bolt On

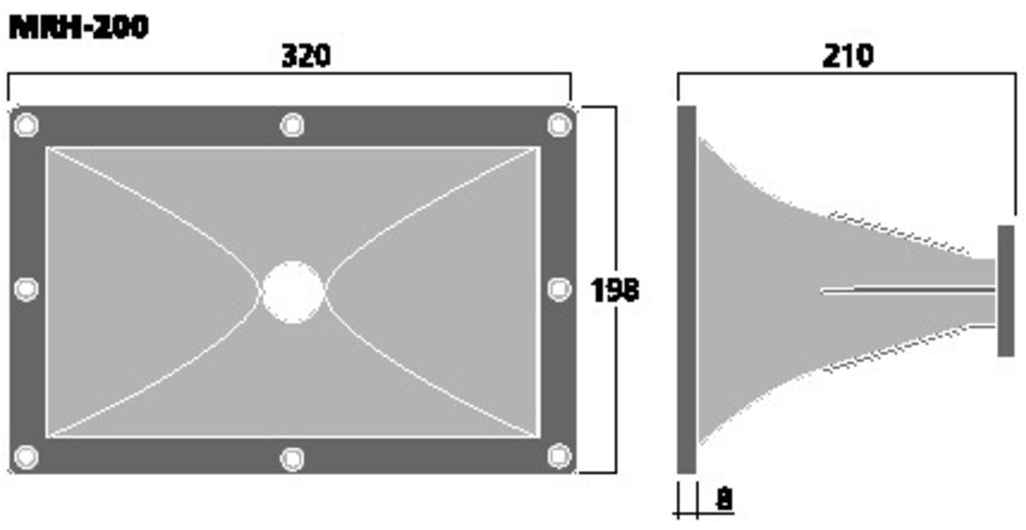

Horn Flare 13" x 8"
Specifications:
Dimensions320 x 198 x 210mm
Weight700g
Suitable Drivers >80 Watt Compression Driver
A glass fibre reinforced ABS plastic Horn with 25mm (1") throat, suitable for use with flange mounting compression drivers. Frequency range 700 - 16,000Hz vertical 60° and dispersion horizontal 100°.
Order Code Each
200-392MRH-200 Horn Flare 13" x 8"46.70



Flange Adaptor for Horn Flares and Compression DriversMHA-35 Specifications
Specifications:
Dimensions25 x 90mmØ
WeightKg
A universal adaptor for connecting 1⅜" horn flares to flange compression drivers. Manufactured from aluminium, pre drilled for either 2 or 3 hole fixing compression drivers.
Order Code Each
200-3801⅜" Screw Thread - 1" Flange Adaptor9.65
