Round Push Button Switches

Low Cost Black Push Switch Red Push to make switch
Specifications:
Contact Arrangement SPST
Connection Solder Tag
Rating 250mA 125Vac
Panel Cut-out 7mmØ
Dimensions 28 x 11mmØ

Panel mounting miniature single pole push to Make momentary switches with single nut fixing with plastic body. Available with black or red 6mmØ plastic actuator button.
Order Code   1 10+ 25+
212-460 Low Cost Push to Make Switch - Black 0.41 0.328 0.2876
212-462 Low Cost Push to Make Switch - Red 0.49 0.3888 0.3402



Push to Break Switch - Black Push to Break Switch - Red
Specifications:
Contact Arrangement SPST
Connection Solder Tag
Rating 250mA 125Vac
Panel Cut-out 7mmØ
Dimensions 28 x 11mmØ

Single pole push to Break switch, single nut fixing, plastic body available with black or red plastic actuator 6mmØ button.
Order Code   Each
212-470 Low Cost Push to Break Switch - Black 0.48
212-472 High Quality Push to Break Switch - Red 0.76

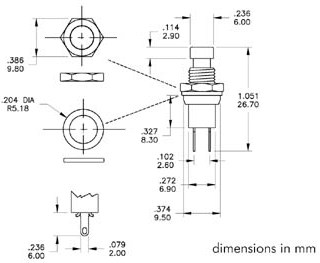

Line Drawing
Specifications:
Contact Arrangement SPST
Connection Solder Tag
Rating 1A 125Vac
Panel Cut-out 7mmØ
Dimensions 26.7 x 9.5mmØ

High Quality anel mounting push switch with metal shaft, single pole push to Make momentary switch with single nut/washer fixing. Available in six colours.
Order Code   1 10+ 25+
212-450 Push to Make 7mmØ Button - Black 0.88 0.7914 0.7064
212-452 Push to Make 7mmØ Button - Red 0.88 0.7914 0.7064
212-454 Push to Make 7mmØ Button - Yellow 0.88 0.7914 0.7064
212-455 Push to Make 7mmØ Button - Green 0.88 0.7914 0.7064
212-456 Push to Make 7mmØ Button - Blue 0.88 0.7914 0.7064
212-459 Push to Make 7mmØ Button - White 0.88 0.7914 0.7064



Push Change-Over 9mmØ Button - Red
Specifications:
Contact Arrangement SPDT
Connection Solder Tag
Rating 3A 125Vac
Panel Cut-out 13mmØ
Dimensions 21 x 14mmØ

Panel mounting single pole change over switch, single nut fixing.
Order Code   Each
212-492 Push Change-Over 9mmØ Button - Red 1.94



Push to Make 8mmØ Button - Black Push to Make 8mmØ Button - Red Push to Make 8mmØ Button - Yellow Push to Make 8mmØ Button - Green Push to Make 8mmØ Button - Blue Push to Make 8mmØ Button - White
Specifications:
Contact Arrangement SPST
Connection Solder Tag
Rating 1A 125Vac
Panel Cut-out 11mmØ
Dimensions 26 x 12mmØ

Panel mounting miniature single pole push to make momentary switches with single nut fixing. Available in six colours.
Order Code   1 10+ 25+
212-480 Push to Make 8mmØ Button - Black 0.99 0.89 0.79
212-482 Push to Make 8mmØ Button - Red 0.99 0.89 0.79
212-484 Push to Make 8mmØ Button - Yellow 0.99 0.89 0.79
212-485 Push to Make 8mmØ Button - Green 0.99 0.89 0.79
212-486 Push to Make 8mmØ Button - Blue 0.99 0.89 0.79
212-489 Push to Make 8mmØ Button - White 0.99 0.89 0.79



Push to Make 13mmØ Button - Black Push to Make 13mmØ Button - Red Push to Make 13mmØ Button - Yellow Push to Make 13mmØ Button - Green Push to Make 13mmØ Button - Blue Push to Make 13mmØ Button - White
Specifications:
Contact Arrangement SPST
Connection Solder Tag
Rating 3A 125Vac
Panel Cut-out 16mmØ
Dimensions 24 x 19mmØ

Panel mounting miniature single pole push to make momentary switches with single nut fixing. Available in six colours.
Order Code   1 10+ 25+
212-500 Push to Make 13mmØ Button - Black 2.56 2.304 2.048
212-502 Push to Make 13mmØ Button - Red 2.56 2.304 2.048
212-504 Push to Make 13mmØ Button - Yellow 2.56 2.304 2.048
212-505 Push to Make 13mmØ Button - Green 2.56 2.304 2.048
212-506 Push to Make 13mmØ Button - Blue 2.56 2.304 2.048
212-509 Push to Make 13mmØ Button - White 2.56 2.304 2.048



Round Momentary Push Switch - Black Round Momentary Push Switch - Red
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 1A 125Vac
Panel cut out 12mmØ
Dimensions 38 x 20mmØ

Panel mounting push to make round, non latching (Momentary) switches, available in Black or Red. Button size 12mmØ
Order Code   1 10+ 25+
212-630 1A 125V Round Momentary Push Switch - Black 0.79 0.6328 0.5695
212-632 1A 125V Round Momentary Push Switch - Red 0.78 0.70 0.62



Round Latching Push Switch - Black Round Latching Push Switch - Red
Specifications:
Contact Arrangement SPST
Connection Solder
Rating 1A 125Vac
Panel cut out 12mmØ
Dimensions 38 x 20mmØ

Panel mounting push to make round, latching switches, available in Black or Red. Button size 12mmØ
Order Code   1 10+ 25+
212-640 1A 125V Round Latching Push Switch - Black 0.86 0.77 0.69
212-642 1A 125V Round Latching Push Switch - Red 0.75 0.60 0.54



SPDT Push Switch Line Drawing
Specifications:
Contact Arrangement SPDT
Connection Solder Tag
Rating 1A 120Vac
Panel Cut-out 6.5mmØ
Dimensions (Body) 6.86 x 12.7mm

Panel mounting single pole change over switch with momentary action. Supplied with mounting nuts and washers. This switch matches our range of high quality toggle switches.
Order Code   1 10+ 25+
212-040 1A SPDT Round Momentary Push Switch 3.40 3.06 2.72



DPDT Push Switch
Specifications:
Contact Arrangement DPDT
Connection Solder Tag
Rating 1A 120Vac
Panel Cut-out 6.5mmØ
Dimensions (Body) 11.4 x 12.7mm

Panel mounting double pole change over switch with momentary action. Supplied with mounting nuts and washers. This switch matches our range of high quality toggle switches.
Order Code   1 10+ 25+
212-042 1A DPDT Round Momentary PushSwitch 4.30 3.87 3.44



5.0mm Black Cap 9.0mm Switch Cap
Specifications:
Colour Black
Material Plastic

Dimensions 6 x 5.0mmØ
Dimensions 6.0 x 9.35mmØ
Caps for SPDT and DPDT push switches (212-040 and 212-042), available in two sizes 5.0mmØ and 9.35mmØ
Order Code   1 25+ 50+
060-814 Switch Cap 5.0mmØ 0.15 0.12 0.09
060-816 Switch Cap 9.35mmØ 0.10 0.08 0.06
