VMA436 8 Channel Relay

8 Channel Relay Module VMA436

Velleman
VMA436
5410329680985
kg
    Delivery time:1-5 Days
Add to cart
  • Description
  • More

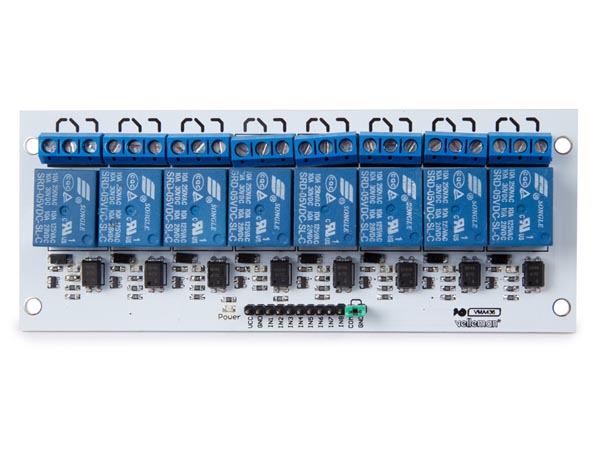

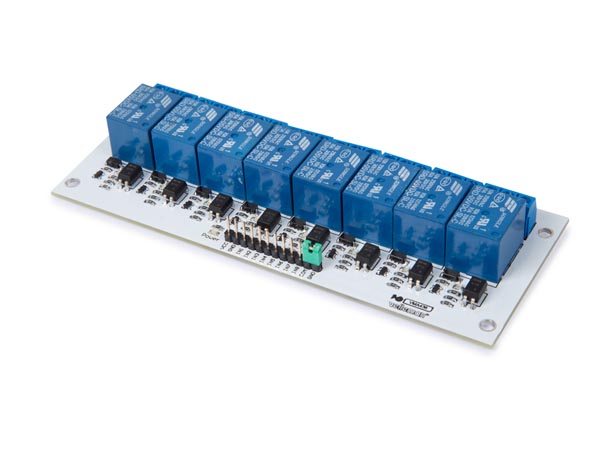

This 8-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller.

  • standard interface that can be controlled directly by any microcontroller
  • opto-isolated inputs
  • indicator LEDs for relay output status

  • control input current (in1 to in4): 5 - 25 mA
  • control input voltage: 5 - 12 VDC
  • relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
  • dimensions: 57 x 138 mm
  • operating voltage: 5 V
