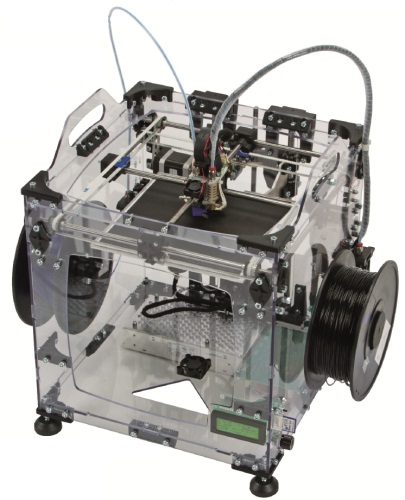

Velleman K8400 3D Printer

Specification Features:

Printing:
- Print technology: Fused Filament Fabrication (FFF)
- Layer resolution: standard: 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
- Build plate: 215 x 240 mm (8.46" x 9.45")
- Build volume: 180 x 200 x 190 mm (7" x 7.8" x 7.5")
- Print speed: 30 mm/s - 120 mm/s
- Travel speed: 30 mm/s - 300 mm/s
- Build plate surface: Removable layer of BuildTak™
  (consumable; also sold separately)
- Filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm).
  Open filament policy.
- Prints: PLA, ABS
  Testing with other materials in progress.
- Nozzle 1&2 diameter: 0.35mm
  One nozzle supplied. Second nozzle optional.
- Distance between nozzles: 23.7 mm
- Maximum nozzle operating temperature: 270 °C
Software:
- Firmware: Modified Open Source Marlin 3D Printer
  Firmware - user up gradable
- Software: Repetier - CuraEngine - Slic3r (RepRap compatible)
Hardware:
- Dimensions: X Y Z 360 - 380 - 395 mm (without filament spools)
- Frame: Polycarbonate panels and fibre reinforced moulded ABS parts
Electrical:
- Communication: USB 2.0 or SD card
- Controller board: AVR ATmega2560 based
  Dual head and heated bed capable
- Display: 4 x 20 ch. blue LCD with white backlight
Note: At the factory, your Vertex K8400 3D printer controller board has been loaded with the DUAL extruder firmware. If you are using the Vertex printer as a single* extruder printer, you will need to upload the single extruder firmware

Download Drivers
	Firmware for the Vertex 3D printer with one nozzle. Version M1-V1.1-H1. DO NOT FORGET TO RELOAD THE EEPROM SETTINGS AFTER THE UPGRADE!
	Firmware for the Vertex 3D printer with dual nozzles. Version M1-V1.1-H2. DO NOT FORGET TO RELOAD THE EEPROM SETTINGS AFTER THE UPGRADE!
	Vertex 3D printer Repetier Host. Version 1.0.6.
	Vertex printer single head
	Vertex printer dual head
	Software: Repetier version 0.84 and up www.repetier.com

Read the fully Illustrated Assembly Manual for K8400

Filament

ABS and PLA (Not supplied with Filament Wire)

Power Supply

100 - 240 VAC 50-60Hz 150W max.

Data Sheet for Second Nozzle

Dimensions

360 x 380 x 395mm

Weight

11.55kg

After a big success of the first 3D printer K8200, we are introducing the next generation Velleman 3D printer kit – Velleman Vertex K8400, easy, accurate, affordable & open source – are the main advantages of this new 3D printer.
Velleman K8400 3D printer with the capability of printing with two filaments via Two 0.35mm Nozzles. Supplied in a robust construction featuring transparent wall protection and integrated SD card reader & controller (also controllable via USB interface).

The K8400 does not have a heated print bed - BuildTak works for both ABS and PLA, which means if you are using a printer that can print in either of these materials it is not necessary to change the surface between builds. Heated print beds are not a problem, BuildTak is composed of high quality raw materials and is designed to withstand the high temperatures of a typical FFF 3D printer (i.e. 110-125C heated print bed)

The Vertex is the next generation of Easy, Accurate, affordable and Open Source 3D printer self assembly kit. Removable build plate & second extruder nozzle available as optional extras.

There are plenty of new features that make this printer extraordinary:

No soldering required

Modern housing

Prints PLA, ABS – open filament policy

PLA 1,75mm – ensures finer layers of printed object

Nozzle 0,35 mm - possibility to use second nozzle (optional)

Order Code		Each
K8400	Velleman Vertex 3D Printer	-
