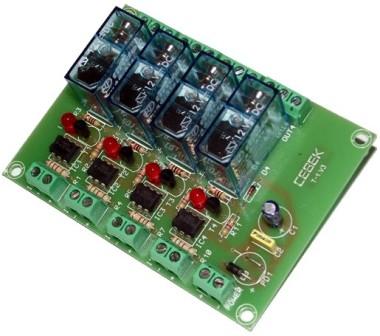

Cebek Opto-Coupled Module with 4 Relays


Cebek Opto-Coupled Module with 4 Relays
Specifications:
Reference T-1
Input 3 - 24VDC
Relay Output (4) 3A
Consumption 160mA
Power Supply 12VDC
Dimensions 94 x 87 x 30mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications
The Cebek T-1 is a an opto-coupled four-output interface with 4-relays. When an voltage of between 3 and 24 is applied to the input the corresponding relay will be energised. It allows for easy interface between CMOS and TTL signals. An LED gives visual indication of the relay.

Related Products::
Power Supply FE-2


Order Code   each
T-1 Cebek Opto-Coupled Module with 4 Relays 23.36
