DC Power Plugs

DC Power Plug 0.7mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 4mmØ

High quality 2.35mmØ DC power plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-210 DC Power Plug 0.7mm ID / 2.35mm OD, 10mm shaft 0.50 0.45 0.40



DC Power Plug 1.3mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 4mmØ

High quality 3.4mmØ DC power plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-220 DC Power Plug 1.3mm ID / 3.4mm OD, 10mm shaft 0.42 0.3348 0.2511



DC Power Plug 1.7mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 4mmØ

High quality 4.0mmØ DC power plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-230 DC Power Plug 1.7mm ID / 4.0mm OD, 10mm shaft 0.40 0.32 0.28



DC Power Plug 1.7mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 5mmØ

High quality 4.75mmØ DC power plug plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-232 DC Power Plug 1.7mm ID / 4.75mm OD, 10mm shaft 0.50 0.45 0.40



DC Power Plug 2.1mm ID / 5.5mm DC Power Plug 2.1mm ID / 5.5mm
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 5mmØ

High quality 5.5mmØ DC power plug plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-240 DC Power Plug 2.1mm ID / 5.5mm OD, 10mm shaft 0.32 0.27 0.225
069-241 DC Power Plug 2.1mm ID / 5.5mm OD, 15mm shaft 0.27 0.2218 0.1774



DC Power Plug 2.1mm ID Screw Terminals
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

This handy Plug features a 2.1mm DC plug and screw terminal connector. You simply screw your cable into the back with no splicing or crimping and plug in. Ideal for Professional CCTV installers.
Order Code   1 10+ 25+
069-242 DC Power Plug 2.1mm ID Screw Terminals 0.75 0.60 0.54

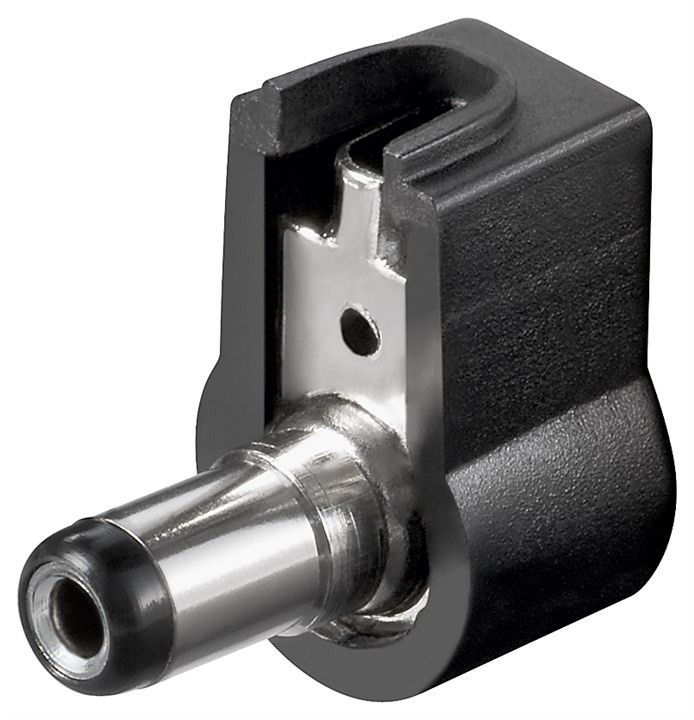

Right angled 2.1mm DC plug
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

High quality right angled DC plug with 10mm shaft with solder terminals
Order Code   1 10+ 25+
069-243 DC Power Plug 2.1mm ID / 5.5mm OD, 10mm shaft (90º) 0.75 0.60 0.54



DC Power Plug 2.5mm ID / 5.5mm DC Power Plug 2.5mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 5mmØ

High quality 5.5mmØ DC power plug plug with a soft black plastic cover and integral cable strain relief.
Order Code   Each
069-250 DC Power Plug 2.5mm ID / 5.5mm OD, 10mm shaft 0.26
069-251 DC Power Plug 2.5mm ID / 5.5mm OD, 15mm shaft 0.38



DC Power Plug 3.1mm ID
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 5mmØ

High quality 6.3mmØ DC power plug plug with a soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-260 DC Power Plug 3.1mm ID / 6.3mm OD, 10mm shaft 0.56 0.45 0.40



DC Power Plug 3.3mm ID / 5.5mm OD / 1mm Pin
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

DC Power plugs with a centre male pin, 2 solder connections, screw cover.
Order Code   Each
069-280 DC Power Plug 3.3mm ID / 5.5mm OD / 1mm Pin, 10mm shaft 1.68



DC Power Plug 3.1mm ID / 6.5mm OD / 1mm Pin
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

DC Power plugs with a centre male pin, 2 solder connections, screw cover.
Order Code   Each
069-290 DC Power Plug 3.1mm ID / 6.5mm OD / 1mm Pin, 10mm shaft 2.24



DC Power Plug 4.3mm ID / 6.5mm OD / 1.4mm Pin
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

DC Power plugs with a centre male pin, 2 solder connections, screw cover.
Order Code   1 10+ 25+
069-295 DC Power Plug 4.3mm ID / 6.5mm OD / 1.4mm Pin, 10mm shaft 1.33 1.18 0.944



2.1 x 5.5mm DC Line Socket  2.5 x 5.5mm DC Line Socket DC Socket (Metal)
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 5mmØ

High quality 5.5mmØ DC line sockets, available with 2.1mmØ and 2.5mmØ centre pin. Soft black plastic cover and integral cable strain relief.
Order Code   1 10+ 25+
069-340 2.1 x 5.5mm DC Line Socket 0.68 0.60 0.54
069-350 2.5 x 5.5mm DC Line Socket 0.80 0.5354 0.4819
069-351 2.5 x 5.5mm DC Line Socket (All Metal Socket) 0.88 0.74 0.59



DC In Line 2.1mm Socket with Screw Terminals
Specifications:
Contacts Nickel-plated
Connection Screw
Body Black Plastic
Maximum Cable mmØ

This handy 2.1mm DC in line socket, fitted with a screw terminal connector. You simply screw your cable into the back with no splicing or crimping and plug in. Ideal for use with Professional CCTV installers.
Order Code   Each
069-341 DC In Line 2.1mm Socket with Screw Terminals 0.70



2.1mm DC Chassis Socket - Single hole 2.5mm DC Chassis Socket - Single hole
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out 12mmØ

Chassis mounting plastic DC power sockets with integral switch, available with 2.1mmØ and 2.5mmØ centre pin. Use with 10.0mmØ plugs
Order Code   1 10+ 25+
069-342 2.1mm DC Chassis Socket - Single hole 0.60 0.54 0.48
069-352 2.5mm DC Chassis Socket - Single hole 0.60 0.54 0.48



2.1mm DC Chassis Metal Socket - Single hole 2.5mm DC Chassis Metal Socket - Single hole
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Panel Thickness 2.5mm
Panel Cut-out 11mmØ

Chassis mounting metal DC power sockets, available with 2.1mmØ and 2.5mmØ centre pin.
Order Code   Each
069-343 2.1mm DC Chassis Metal Socket - Single hole 1.22
069-353 2.5mm DC Chassis Metal Socket - Single hole 0.83

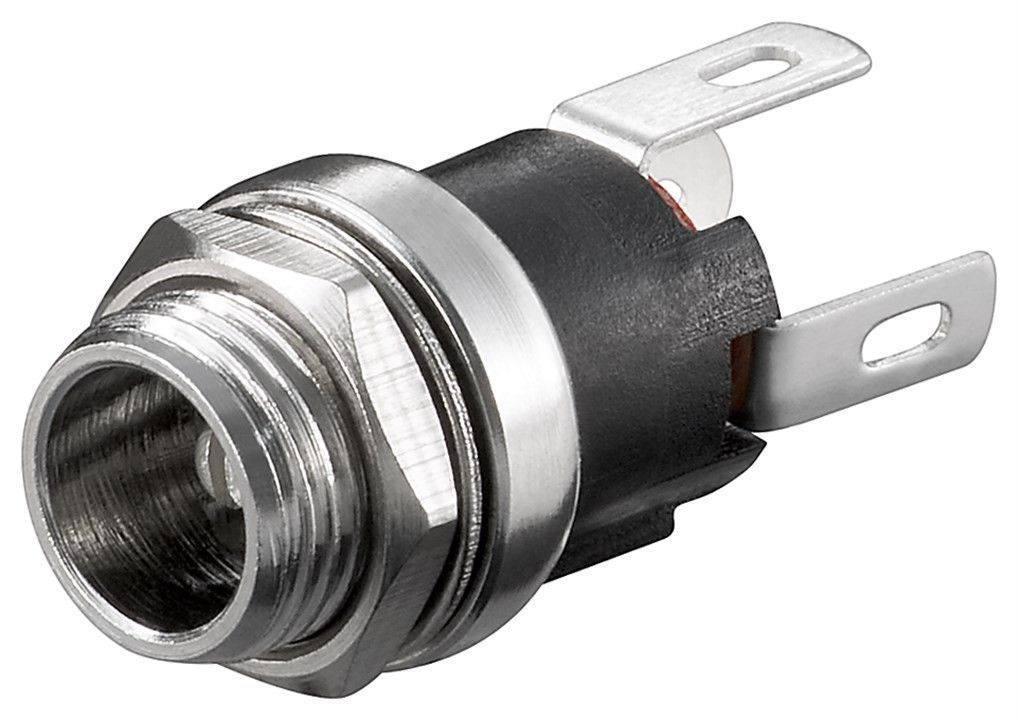

2.1mm DC Slimline Chassis Metal Socket 2.5mm DC Slimline Chassis Metal Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Panel Thickness mm
Panel Cut-out mmØ

Chassis mounting metal DC power sockets, available with 2.1mmØ and 2.5mmØ centre pin.
Order Code   1 10+ 25+
069-345 2.1mm DC Slimline Chassis Metal Socket - Single hole 0.88 0.734 0.5872
069-355 2.5mm DC Slimline Chassis Metal Socket - Single hole 0.94 0.846 0.752



2.1mm DC Switched Socket, 90° PCB Mounting Socket 2.5mm DC Switched Socket, 90° PCB Mounting Socket
Specifications:
Contacts Nickel-plated
Connection Solder PCB
Body Black Plastic


PCB mounting plastic DC power sockets with integral switch, available with 2.1mmØ and 2.5mmØ centre pin.
Order Code   1 10+ 25+
069-344 2.1mm DC Switched Socket, 90° PCB Mounting 0.26 0.213 0.1704
069-354 2.5mm DC Switched Socket, 90° PCB Mounting 0.32 0.2625 0.21



Low Voltage Polarised Line Socket Low Voltage Polarised Chassis Plug
Specifications:
Contacts Nickel-plated
Rating 3A
Connection Solder
Body Plastic
Panel Cut-out mm
A pair of 2-way power connectors, available as line socket and chassis plug. They have polarization notch to prevent in correct insertion. (low voltage use only)
Order Code   Each
069-130 2 Way Low Voltage Polarised Line Socket 3A 1.48
069-135 2 Way Low Voltage Polarised Chassis Plug 3A 1.64



Specifications:
No Contacts 2
Connection Solder
Body Polycarbonate

Current Rating 30A
Voltage 500V

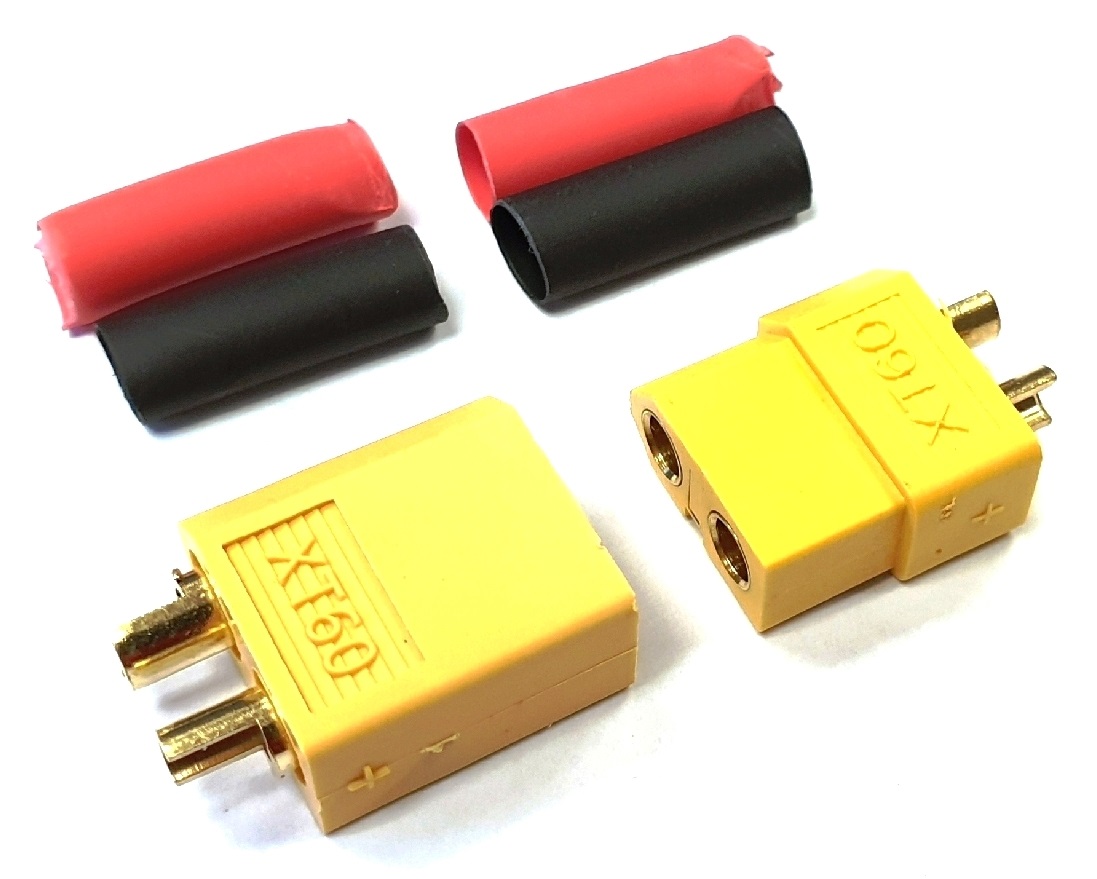

Power connectors, supplied as a pair with two red and two black lengths of heat shrink tubing.
Order Code   Each
069-152 XT60 30A Power Male & Female Connectors 0.86

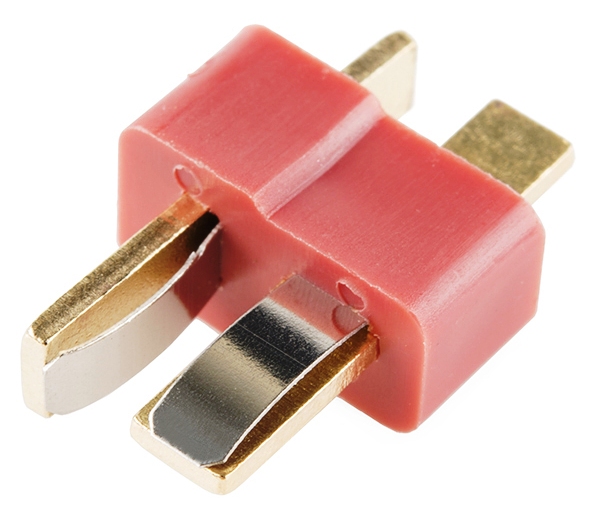

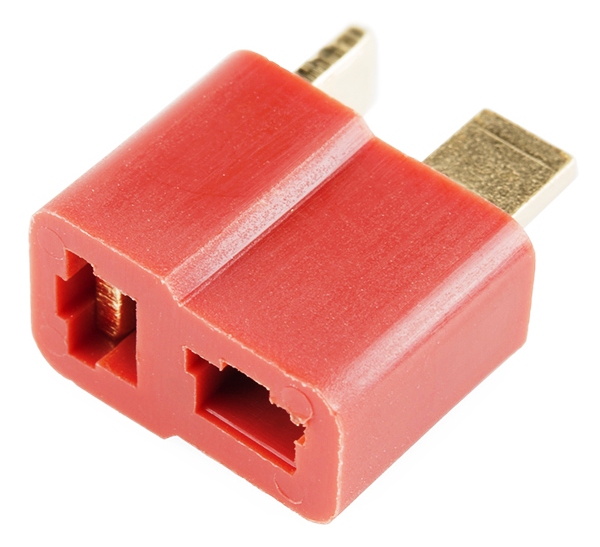

Male "Deans" Connector Female "Deans" Connector
Specifications:
No Contacts 1
Connection Solder
Body Polycarbonate

Current Rating 25A
Voltage 600V
Deans power connectors are generally used as a higher power alternative to Tamiya type connectors. They are now becoming very popular with battery packs for  Radio Controlled models.
Order Code   1 25+ 50+
069-160 2 Way Male 25A "Deans" T Power Connector - Solder Terminals 0.40 0.32 0.288
069-165 2 Way Female 25A "Deans" T Power Connector - Solder Terminals 0.30 0.24 0.216



Specifications:
No Contacts 1
Connection Solder
Body Polycarbonate

Current Rating 40A
Voltage 600V
Anderson Powerpole connectors. Rated at 40A connector used with 133-910 black connector to create a unique connection system. Contacts purchased separately 133-900. These type of connectors are often used on wheel chairs and golf trolley power packs.
Order Code   1 25+ 50+
133-912 AMP Powerpole Housing 40A - Red 0.68 0.612 0.544
133-910 AMP Powerpole Housing 40A - Black 0.64 0.576 0.512



Specifications:
Contacts Silver Plated
Connection 12/16 AWG
Body Copper
Current Rating 40A
Voltage 600V
High current contact for Red and Black Powerpole housings.
Order Code   Each
133-900 AMP Power Hermaphrodite crimp terminal 40A 0.26

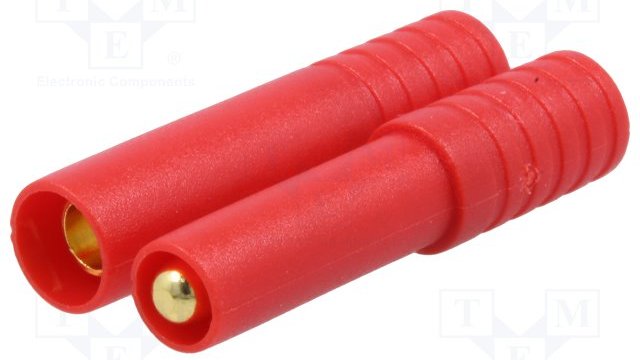

HXT 4mm Plug/Socket
Specifications:
No Contacts 1
Connection Solder
Body Polycarbonate

Current Rating 70A
Voltage 500V
70A connector used on High Power Battery packs
Order Code   1 25+ 50+
069-150 2 Way HXT 4mm Plug/Socket Gold Plated 0.92 0.8845 0.854
