Specialist Enclosures

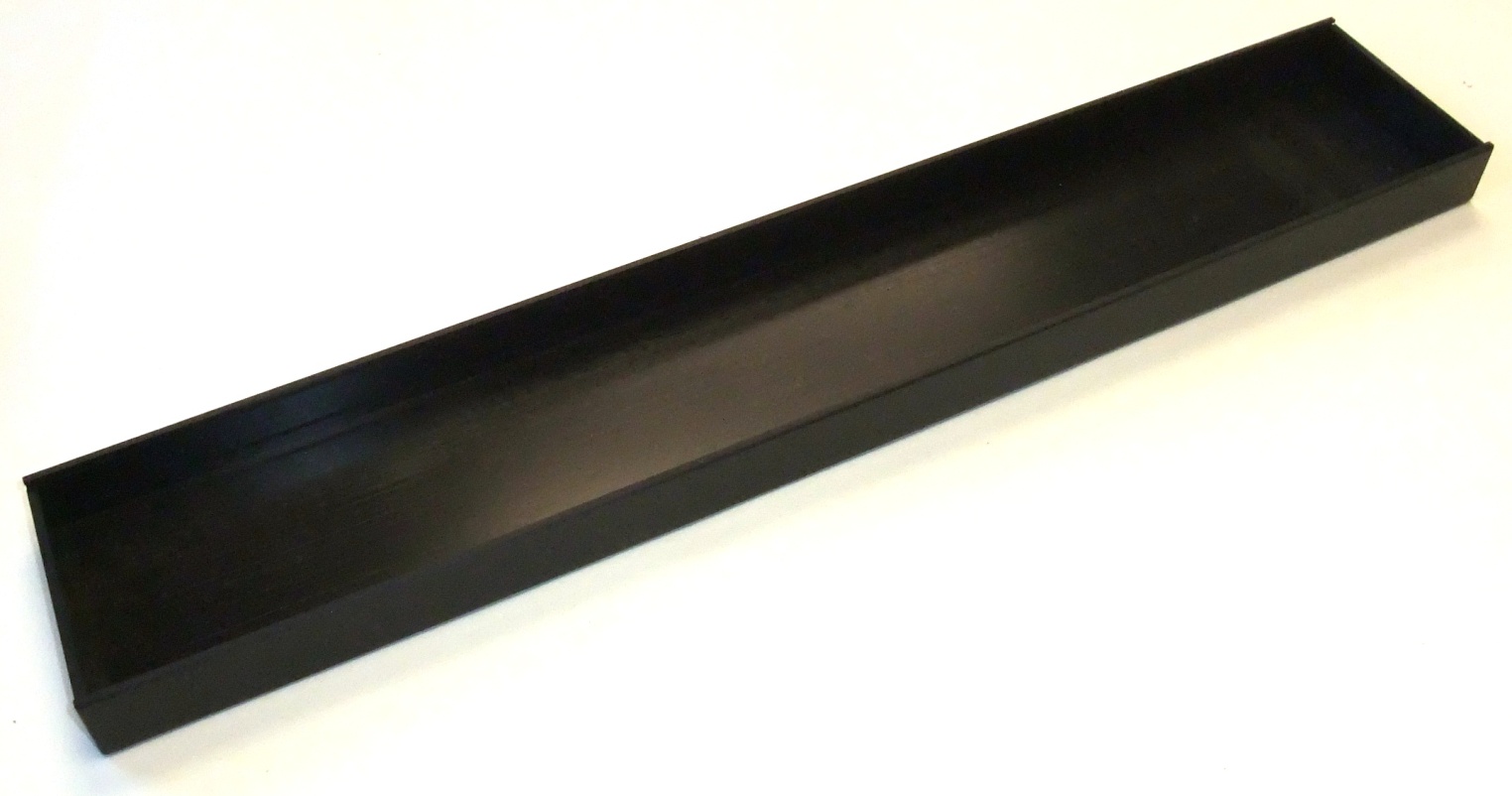

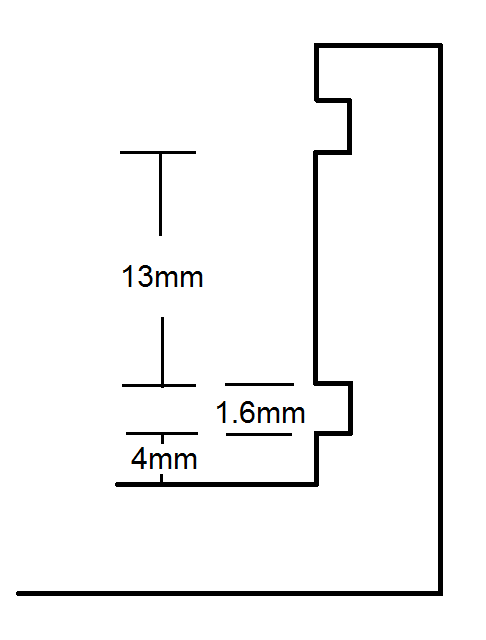

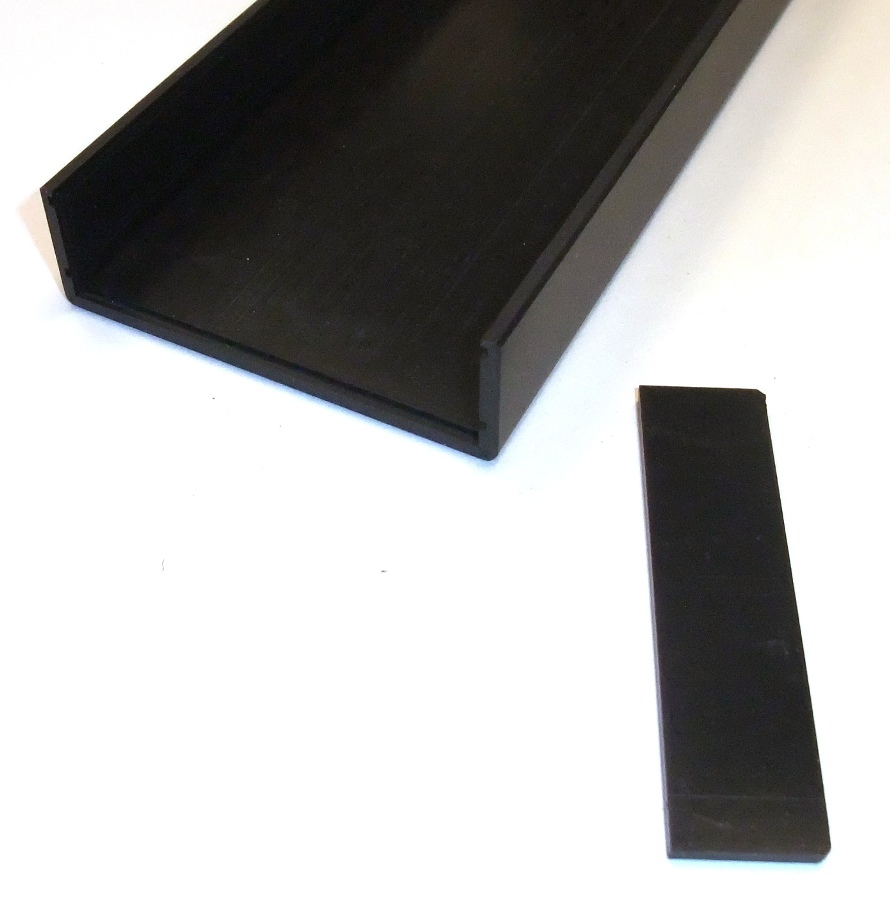

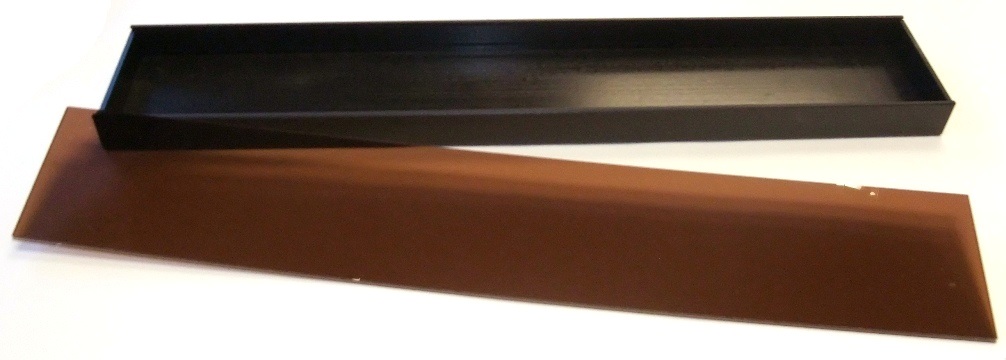

Enclosure for K5600R and K5600G
Specifications:
Model B5600
Material ABS Plastic
Colour Black

Dimensions 482 x 85 x 25mm
Subject to technical modifications.

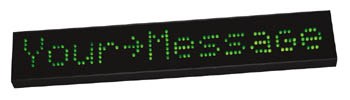

This housing is suitable for Velleman K5600R (Red) Advertisement LED Display.
Order Code   1
400-975 Velleman Advertising Display Kit 18.95



Housing for K2649 Thermostat Kit
Specifications:
Model B2649
Material ABS Plastic
Colour Off White

Dimensions 124 x 62 x 65mm
Subject to technical modifications.
This housing is suitable for Velleman K2649 Thermostat with LCD Kit
Order Code   1
400-973 Velleman B2649 Thermostat Kit 19.75



DIN Rail Module for Domotica Light System
Specifications:
Model B8006
Material ABS Plastic
Colour Clear/Green

Dimensions 163 x 74/120 x 90mm
Subject to technical modifications.
The housing is suitable for Velleman Domotica Light System K8006 It can accommodate busprint board and up to five plug-in units. It is also suitable for Velleman K8056, K8090, VM118, VM129 and VM8090
Order Code   1
400-978 Velleman B8006 DIN Rail Module 24.93



TKOK17 White Plastic Hand Held Enclosure TKOK19 Black Plastic Hand Held Enclosure
Specifications:
Model TKOK17 and TKOK19
Material ABS Plastic
Colour White/Black

Dimensions 165.3 x 103.2 x 38.5mm
Subject to technical modifications.
These attractively styled enclosures were especially designed for "hand-held" instruments. The cases are manufactured in two parts from scratch-resistant ABS, the case parts are joined using 2/4 self-tapping screws. The enclosures have a recessed area suitable for membrane keyboards or aluminium panels.
Order Code   1
400-987 White Plastic Hand Held Enclosure 18.85
400-989 Black Plastic Hand Held Enclosure 18.85



Enclosure for K8099 Nixie Clock
Specifications:
Model CKB8099
Material Plexiglass
Colour Black

Dimensions 130 x 75 x 25mm
Subject to technical modifications.
A pre-drilled plexiglass enclosure, designed to house the Velleman K8099 Nixie Clock Kit.
Order Code   1
400-986 Velleman Enclosure for K8099 Nixie Clock 25.20



Case for Multifunctional Clock Kit
Specifications:
Model B8009
Material ABS Plastic
Colour Black

Dimensions 312 x 84 x 25mm
Subject to technical modifications.
This housing is suitable for Velleman K8009 Multifunctional Clock Kit.
Order Code   1
400-981 Velleman B8009 Multifunction Clock 14.95



Specifications:
Model B8045
Material ABS Plastic
Colour Grey

Dimensions 124 x 73 x 30mm
Subject to technical modifications.
This housing is suitable for Velleman K8045 Programmable LCD Message Board. The case can be panel or surface mounted. It is supplied with printed front bezel, 4 buttons, fixing screws and manual. The case can easily be re-sprayed in any colour of your choice.
Order Code   1
400-985 Velleman B8045 Programmable Message Board 14.59



Enclosure for Multifunction Counter
Specifications:
Model B8035
Material ABS Plastic
Colour Grey

Dimensions 124 x 73 x 30mm
Subject to technical modifications.
This housing is suitable for Velleman K8035 Multifunctional Up/Down Counter. The case can be panel or surface mounted. It is supplied with printed front bezel, 4 buttons, fixing screws and manual. The case can easily be re-sprayed in any colour of your choice.
Order Code   1
400-983 Velleman B8035 Multifunctional Counter 13.99

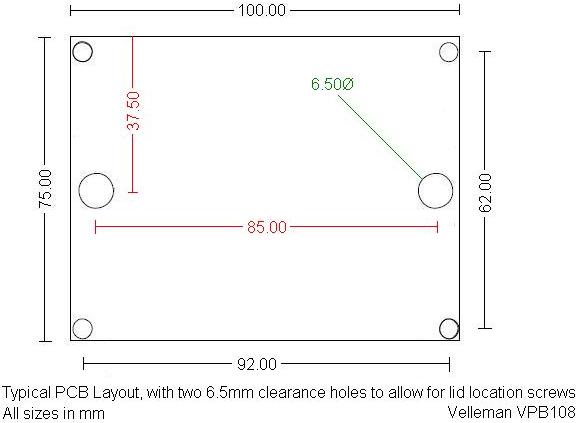

Velleman DIN Rail project box Velleman DIN Rail project box
Specifications:
Model VPB108
Material ABS Plastic
Colour Charcoal
Max PCB Size 100 x 75mm
Dimensions 110 x 100 x 45mm
Subject to technical modifications.
This enclosure was originally designed to house projects manufactured by Velleman, but can be used to house any small PCB, Relay or PSU. It has as a pre-drilled top for LED's or making internal adjustments to pots etc. The case can be used free standing or mounted on standard DIN Rail.
Order Code   1 10+
400-908 Velleman VPB108 DIN Rail project box 4.89 4.11



Velbus Frame and Side Cover Velbus Frame and Side Cover
Specifications:
Model VMBFDG and VMBFLG
Material ABS Plastic
Colour Dark Grey
  Light Grey
Dimensions 118 x 80mm
Subject to technical modifications.
Frame and side cover for the Velbus home automation system push button and timer modules. (VMB4PD) and temperature controller (VMB1TC)
Order Code   1 5+
400-990 VMBFDG Dark Grey frame and side cover 8.70 7.28
400-995 VMBFLG Light Grey frame and side cover 8.70 7.28



Velbus pattress box
Specifications:
Model VMBBOX
Material Plastic
Colour Yellow
Fixing Centres 82mm

Dimensions 106 x 70 x 52mm
Subject to technical modifications.
Mounting box suitable for Velbus VMB4PD push button timer module, frame and side cover.
Order Code   1 10+
605-210 Velleman VMBBOX Mounting Box 0.92 0.83



Blank insert Module
Specifications:
Model VMBFBI
Material ABS Plastic
Colour Dark Grey

Dimensions mm
Subject to technical modifications.
A blank plate-housing, which fits into VMBFDG or VMBFLG frame. Suitable for mounting custom designed switches or sensors
Order Code   1
VMBFBI Blank insert Module 3.84



13A Power Supply Case 13A Power Supply Case (with earth pin)
Specifications:
Model PS5 and PS5MEP
Material ABS Plastic
Colour Black

Dimensions 78 x 53 x 50mm (Excludes Pins)
Subject to technical modifications.
Moulded power supply cases, available with brass earth pin or plastic pin. These cases are ideal to house mains transformer and associated components used to manufacture a custom 'plug-in' power supply.
Order Code   1 10+
400-315 13A Power Supply Case 2.08 1.77
400-320 13A Power Supply Case (with earth pin) 2.32 1.97
