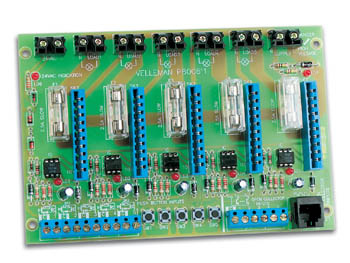

Velleman Domotica Light System - Busprint Kit Velleman

Domotica Light System - Busprint Kit

Specification Features:
  • 5 separated channels
  • Maximum output: 2.5A per channel (fuse protected)
  • Push button control current: 150mA
  • Open collector control current: 35mA DC
  • Power supply: 24VAC / 300mA
  • Supply voltage for modules: 110V to 240VAC

Read the fully Illustrated Assembly Manual for K8006

 PDF Download

Transformer

312-112

Case

B8006

Dimensions

107 x 160 x 70mm

Weight

kg

Create your own domestic modular light control system. For use with optional plug-in timer module K8008 or plug-in slow-on/slow-off module K8029. Bus system holds up to five plug-in units. Optically insulated push button inputs. Can be controlled with open collector circuits (ex. K8000 computer interface card, with IR remote control receiver K8050 or with K8023). Local control pushbuttons included. LED power and mains indicator. LED operation indicator for each channel. Low-voltage (24VAC) control circuit for extra safety. Each plug-in slot is fused. Includes 10 LED's for pushbutton illumination.
Order Code   1+
K8006 Velleman Domotica Light System - Busprint Kit 25.52
